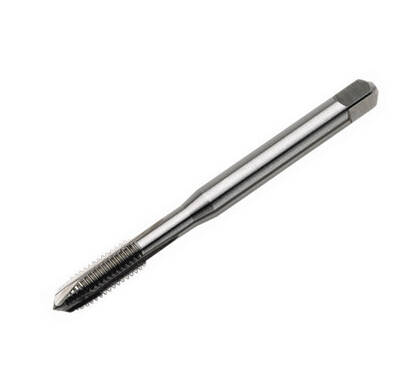

DIN 371/UNC/UNF Machine Taps With Straight Flute
Zoom Browse
Product Name: DIN 371/UNC/UNF Machine Taps With Straight Flute
Product Numbers: TAPS-13101
Product Specifications: No.1-64UNC
Product Unit: Straight Flute
Product Remark: DIN 371/UNC/UNF
Product Class:Machinery and Engineering Tools > Cutting Tools For Machine > Taps DIN
Product Details
【DateTime:2015-06-28 Browse:】【Font: Big Mid Small】【Print】【Close】
DIN 371/UNC/UNF Machine Taps With Straight Flute
  Straight Flute
  DIN 371/UNC/UNF

Order No
Size (mm)
Over length (mm)
Flute Length (mm)
TAPS-13101
No.1-64UNC
40
8
TAPS-13102
NO.2-56UNC
45
9
TAPS-13103
NO.3-48UNC
50
9
TAPS-13104
NO.4-40UNC
56
11
TAPS-13105
NO.5-40UNC
56
11
TAPS-13106
NO.6-32UNC
56
12
TAPS-13107
NO.8-32UNC
63
13
TAPS-13108
NO.10-24UNC
70
15
TAPS-13109
NO.12-24UNC
80
16
TAPS-13110
1/4-20UNC
80
17
TAPS-13111
5/16-18UNC
90
20
TAPS-13112
3/8-16UNC
100
22
TAPS-13113
NO.0-80UNF
40
8
TAPS-13114
NO.1-72UNF
40
8
TAPS-13115
NO.2-64UNF
45
9
TAPS-13116
NO.3-56UNF
50
9
TAPS-13117
NO.4-48UNF
56
11
TAPS-13118
NO.5-44UNF
56
11
TAPS-13119
NO.6-40UNF
56
12
TAPS-13120
NO.8-36UNF
63
13
TAPS-13121
NO.10-32UNF
70
15
TAPS-13122
NO.12-32UNF
80
16
TAPS-13123
1/4-28UNF
80
17
TAPS-13124
5/16-24UNF
90
20
TAPS-13125
3/8-24UNF
100
22
