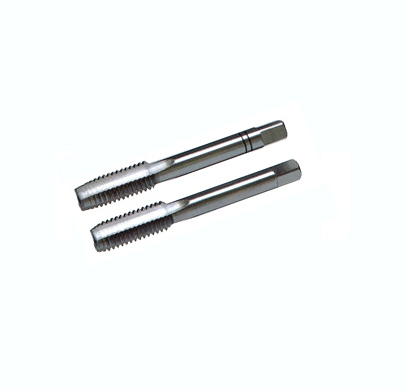

DIN 2181/MF 2 PCS HSS Hand Taps
Zoom Browse
Product Name: DIN 2181/MF 2 PCS HSS Hand Taps
Product Numbers: TAPS-13401
Product Specifications: M3*0.35--M52*1.5
Product Unit: Metric ISO Thread DIN 13
Product Remark: Complies with DIN 2181
Product Class:Machinery and Engineering Tools > Cutting Tools For Machine > Taps DIN
Product Details
【DateTime:2015-07-05 Browse:】【Font: Big Mid Small】【Print】【Close】
DIN 2181/MF 2 PCS HSS Hand Taps
 Complies with DIN 2181
 Metric ISO Thread DIN 13
Specification
Order No
Size (mm)
Over length (mm)
Flute Length (mm)
TAPS-13401
M3*0.35
56
10
TAPS-13402
M3.5*0.35
56
10
TAPS-13403
M4*0.35
63
10
TAPS-13404
M4*0.5
63
10
TAPS-13405
M5*0.5
70
12
TAPS-13406
M6*0.5
80
14
TAPS-13407
M6*0.75
80
14
TAPS-13408
M7*0.75
80
14
TAPS-13409
M8*0.5
80
19
TAPS-13410
M8*0.75
80
19
TAPS-13411
M8*1
90
22
TAPS-13412
M9*1
90
22
TAPS-13413
M10*0.5
90
20
TAPS-13414
M10*0.75
90
20
TAPS-13415
M10*1
90
20
TAPS-13416
M10*1.25
100
24
TAPS-13417
M11*1
90
20
TAPS-13418
M11*1.5
90
20
TAPS-13419
M12*0.75
100
22
TAPS-13420
M12*1
100
22
TAPS-13421
M12*1.25
100
22
TAPS-13422
M12*1.5
100
22
TAPS-13423
M13*1
100
22
TAPS-13424
M13*1.5
100
22
TAPS-13425
M14*0.75
100
22
TAPS-13426
M14*1
100
22
TAPS-13427
M14*1.25
100
 22
TAPS-13428
M14*1.5
100
22
TAPS-13429
M16*1
100
22
TAPS-13430
M16*1.25
100
22
TAPS-13431
M16*1.5
100
22
TAPS-13432
M18*1
110
25
TAPS-13433
M18*1.5
110
25
TAPS-13434
M18*2
125
34
TAPS-13435
M20*1
125
25
TAPS-13436
M20*1.5
125
25
TAPS-13437
M20*2
140
34
TAPS-13438
M22*1
125
25
TAPS-13439
M22*1.5
125
25
TAPS-13440
M22*2
140
34
TAPS-13441
M24*1
140
28
TAPS-13442
M24*1.5
140
28
TAPS-13443
M24*2
140
28
TAPS-13444
M26*1.5
140
28
TAPS-13445
M27*2
140
28
TAPS-13446
M28*1.5
140
28
TAPS-13447
M30*1.5
150
28
TAPS-13448
M30*2
150
28
TAPS-13449
M32*1.5
150
28
TAPS-13450
M35*1.5
170
30
TAPS-13451
M36*1.5
170
30
TAPS-13452
M38*1.5
170
30
TAPS-13453
M40*1.5
170
30
TAPS-13454
M42*1.5
170
30
TAPS-13455
M45*1.5
180
32
TAPS-13456
M48*1.5
190
32
TAPS-13457
M50*1.5
190
32
TAPS-13458
M52*1.5
190
32
