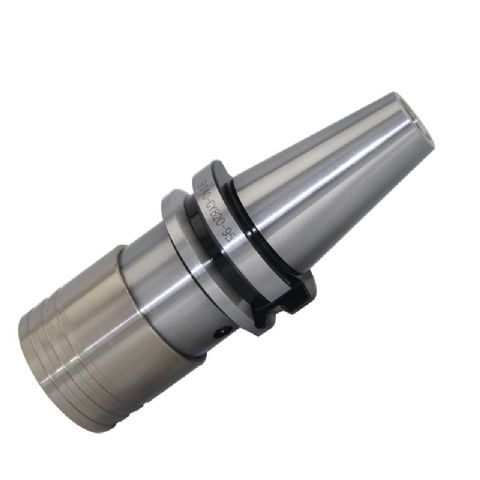

Quick-Change Tapping Chuck with Length Compensation
Zoom Browse
Product Name: Quick-Change Tapping Chuck with Length Compensation
Product Numbers: TC
Product Specifications: M3-M12, M8-M20, M14-M33
Product Unit: Length Compensation
Product Remark: Tap adapter is quick-changeable
Product Class:Machinery and Engineering Tools > Tool Holder > BT Series Chuck Tool Holder
Product Details
【DateTime:2018-12-19 Browse:】【Font: Big Mid Small】【Print】【Close】

Quick-Change Tapping Chuck with Length Compensation

Fetures:
-Length compensation function allows for feed discrepancies between spindle and tap
-Provides a reliable solution for older machines that lack the CNC software

Model

Tapping Range

Stretch

Shrink

D

L1

BT30-TC312-70

M3-M12

7.5

7.5

36

70

BT40-TC312-70

M3-M12

7.5

7.5

36

70

BT40-TC820-95

M8-M20

10

10

56

95

BT40-TC1433-142

M14-M33

17.5

17.5

78

142

BT50-TC312-85

M3-M12

7.5

7.5

36

85

BT50-TC820-105

M8-M20

10

10

56

105

BT50-TC1433-145

M14-M33

17.5

17.5

78

145
