Rapid Positioning Notches Tool Makers Screwless Vise
Zoom Browse
Product Name: Rapid Positioning Notches Tool Makers Screwless Vise
Product Numbers: TMSV-2001
Product Specifications: Accuracy: 0.005mm
Product Unit: Rapid positioning notches
Product Remark: Hardness: HRC58~62
Product Class:Machinery and Engineering Tools > Vises and Clamps > Machine Vises
Product Details
【DateTime:2013-03-29 Browse:】【Font: Big Mid Small】【Print】【Close

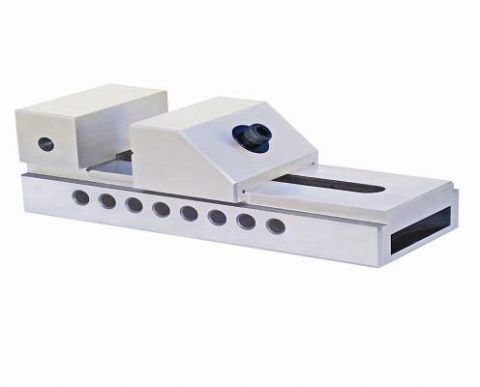

Rapid Positioning Notches Tool Makers Screwless Vise: is made of structural alloy steel.
Squareness and parallelism to within 0.005mm/100mm
Rapid positioning notches
Hardness: HRC58~62
Accuracy: 0.005mm

Order No.            Width(mm)           Depth(mm)              Open(mm)        Length(mm)      Weight(kg)
TMSV-2026             26                               9.15                            22                         65.4                     0.5
TMSV-2036             36                                20                              40                         100                      1.2
TMSV-2038             38                                20                              44                         105                      1.3
TMSV-2050             50                                25                              65                         140                      2.0
TMSV-2063             63                                32                              85                         175                      3.0
TMSV-2073             73                                35                             100                        190                      4.1
TMSV-2080             80                                40                             100                         200                     5.5
TMSV-2088             88                                40                             125                         235                     7.3
TMSV-2100            100                               45                             125                         245                     10
TMSV-2125            125                               50                             160                         285                     18
TMSV-2150            150                               50                             200                         330                     21.5
TMSV-2150A          150                               50                             250                         380                     23.0
TMSV-2150B          150                               50                             300                         430                     24.0
