Soil Hardness Tester With Dial Indicator
Zoom Browse
Product Name: Soil Hardness Tester With Dial Indicator
Product Numbers: SOHT-6001
Product Specifications: Indicative scope of hardness: 0 ~40 mm
Product Remark: Outline dimension:275mmX76mmX50mm.
Product Class:Measuring and Testing Instruments > Agricultural Instruments > Soil Hardness Tester
Product Details
【DateTime:2017-03-01 Browse:】【Font: Big Mid Small】【Print】【Close

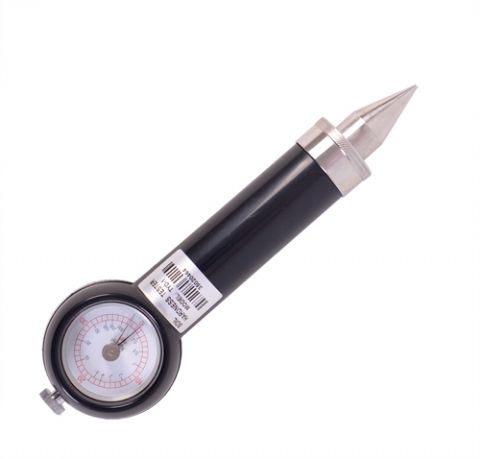

Soil Hardness Tester With Dial Indicator

        The Soil hardness is directly measure the soil hardness by the theoretical value Kg/Cm2 of the pressure gauge. It is very convenient and accurate for this soil hard meter to investigate and study the soil permeability, aeration and soil properties of large machinery operations.

Ⅱ Features

This instrument is mainly used for rapid determination of the soil hardness, with very intuitive test results. Measure the soil wedging pressure to understand the tightness of soil at different depths.

Ⅲ Specifications and Parameters:

Indicative scope of hardness: • 0 ~40 mm,    • 0~500 Kg/Cm2

Outline dimension:275mmX76mmX50mm.

Ⅴ Determination Method:

²  Firstly level the soil surface to be measured and then insert the whole of cutting-edge part of this device into the soil until the part of (opening).

²  Vertically pull out the soil hardmeter clockwise and read out the indicative hardness values from the meter.

²  After reading out the measurement values, rotate the knob of the driven pin to return to zero of the reading of the indicating meter.

²  If there are soils attached within the interior of the side, the measurement values will be incorrect; at this time, please rotate the (opening) part counter-clockwise, take off this round sleeve. After cleaning, rotate to a fixed position, and carry out measurement again.
