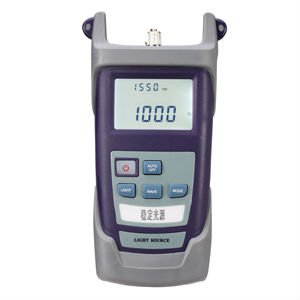

Optical Light Source With Backlight
Zoom Browse
Product Name: Optical Light Source With Backlight
Product Numbers: OPIN-300
Product Specifications: 1310/1550nm
Product Unit: 850/1300/1310/1550nm
Product Remark: Fiber Optic Measurements
Product Class:Measuring and Testing Instruments > Communication Instruments > Optical Light Source
Product Details
【DateTime:2014-10-31 Browse:】【Font: Big Mid Small】【Print】【Close
Optical Light Source With Backlight
Description
        OPIN-300 Optical light source can provide 1 to 4 output wavelengths  to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the optical power meter, it is a perfect solution for the fiber optic network characterization.

Features
---Provides 1~4 output wavelengths which can be optional according to customers needs
---CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz
---modulation output at other wavelengths.
---High stability of the output power
---Stable output wavelength
---Backlight LCD display supports night operation
---Compact size and decent appearance
---Large LCD, easy operation
---Applications
---Maintenance in Telecom
---Maintenance CATV
---Test Lab of  optical fibers
Other Fiber Optic Measurements
Specifications


Type
OPIN-300A
OPIN-300B
OPIN-300C
OPIN-300D
OPIN-300E
Wavelengths(nm)
1310/1550nm
1310/1490/
1550nm
850/1310/
1550nm
1300/1310/
1550nm
850/1300/
1310/1550nm
Emitter Type
FP-LD,LED or others please specify
Output Power(dBm)
                                      -6~-7(1310/1550nm),>0 (650nm)
Spectral Width(nm)

Output Stability
+0.05dB/15mins;  +0.1dB/ 8hours
Modulation Frequencies
CW / 2(650nm) / 270, 1K,2K (1310nm/1550nm)
Optical Connector
FC/PC
  ( Interchangeable FC/SC/ST connectors can be optional)
Power Supply
Alkaline Battery(3 AA 1.5V batteries)
Battery Operating Time(hour)
45
Operating Temperature(oC)
_ 10 ~ +60
Storage Temperature(oC)
_ 25 ~ +70
Dimension(mm)
172*82*33
Weight
295g
Recommendation
 Handheld Light Source is designed for optimal use with  Optical Power Meter for measuring optical loss on both sigle mode and multimode fiber cable.
