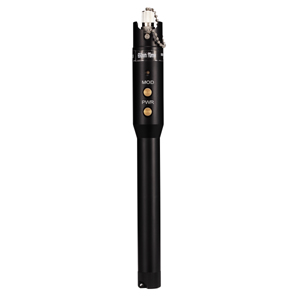

Pentype Fiber Optic Fault Locator
Zoom Browse
Product Name: Pentype Fiber Optic Fault Locator
Product Numbers: VIFL-3105
Product Specifications: wave Length:650nm+-10nm
Product Unit: 2.5mm universal connector
Product Remark: China Optic Fault Locator
Product Class:Measuring and Testing Instruments > Communication Instruments > Visual Fault Locator
Product Details
【DateTime:2014-11-01 Browse:】【Font: Big Mid Small】【Print】【Close
Pentype Fiber Optic Fault Locator

The locator (1mw/5mw/10mw/20mw/30mw) is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation. It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR

Key Feature
---2.5mm universal connector
---Operates either in CW or Pulsed
---Constant output power
---Lower Battery warning
---Long battery life (up to 60 hours)
---Crash-proof and dust-proof design for laser head
---Laser case ground design  prevents ESD damage
---Burning testing to ensure the reliability.
---Portable and rugged, easy to use
---Guarantee to CE standards include EMC, EMI, ROHS

Specifications
Type
VIFL-3105 Pen-type Visual Fault Finder
Central Wavelength
650nm+-10nm (635nm can be required on request)
Emitter Type
FP-LD
Output Power
Optional choice for 1mw,  5mw,10mw 20mw 30mw on actual needs
Optical Connector
2.5mm universal connector
For 1.25mm connectors, FC (Male)-LC (Female) convertor
can be optional on customer requests
Operating Model
Both CW and Pulse available
Pulse Frequency
2~3Hz
Power Supply
2 AAalkaline batteries
Battery Operating Time
60 hours
Operating Temperature
-10~+45 (Degree)
Storage Temperature
-40~+70 (Degree)
Dimension (mm)
15X180
Weight
120g(Without battery)
Remark: Colors can be customized on request when meets certain qty!
Standard Packages
MODEL
INCLUDES
VIFL-3105
Main Unit (Original color), 2pcsAlkaline battery, User Manual, Cotton swabs and Soft Carrying case.
