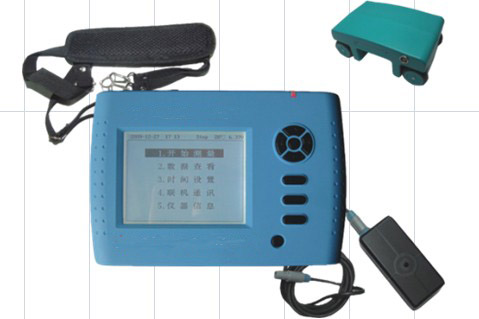

Rebar Detector/locator and Concrete Cover Meter
Application:
Detect the thickness of concrete cover
Measure the diameter and depth of reinforcement
Locator the reinforced position, reinforcement spacing,reinfocing steel bar distribution
Rebar diameter range(mm) Φ6-Φ50
Maximum error of cover thickness +/- 1
Cover thickness range(mm)
First range(mm) 6-90
Second range(mm) 7-180
Maximum error of cover thickness
First range(mm) Second range(mm)
6-59 7-79 +/- 1
60-69 80-119 +/- 2
70-90 120-180 +/- 4
Environmental requirement
Working temperature℃ -10~40℃
Relative humudity <90%
Power source Alkaline cellX6, >30 hours
