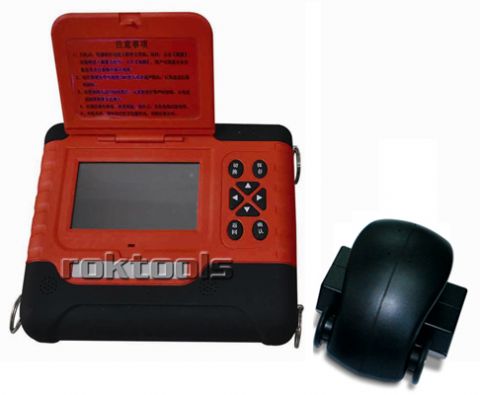

Concrete Cover Meter_Rebar Locator
Applications:
Concrete cover meter can be used in inspecting the construction quality of reinforced concrete works: testing diameter, location, and distribution of rebar as well as the thickness of protective layers. In addition, it is also designed to examine the location of magnetic and conductor in non-magnetic medium and non-conducting medium, such as inspecting the distribution of cables or water supply and hearting pipelines within wall.
Main Features:
*Locate rebar quickly
*Mark reinforcing bars automatically.
*Detect the thickness of the protective layer automatically
*Automatically detect ambient temperature and record test time.
*Real-time display measuring value.
*Unlimited grid scan and section scan mode.
*Real-time data analysis
*Professional Windows data processing software
*Friendly human-computer interactive interface
*Various built-in various helpful files and demo videos facilitate the users to conduct skilled instrument operation.
*4GB large-capacity SD card can store more than 100,000 data
Main technical specifications
| Hardware Platform |
Embedded ARM9 Hardware Platform, WinCe5.0 Operating System,True Color TFT Touch Screen |
| Measuring Range of Covering Layer Thicness |
Low range: 6mm-90mm
Hihg range: 6mm-200mm
|
| Tolerance of covering layer thickness |
Tolerance |
Min(mm) |
Max(mm) |
| |
+/-1 |
6-59 |
6-79 |
| |
+/-2 |
60-69 |
80-119 |
| |
+/-3 |
70-90 |
120-200 |
| Measuring Range of Rebar Diameter |
Ф6mm～Ф50mm |
| Tolerance of Rebar Diameter |
+/-1 grade |
| Power Supply |
Rechargeable Lithium Battery |
| Working Time |
More than 28 Hours |
| Working Temperature |
-10℃-+50 degee |
| Working Humidity |
less tha 90%RH |
| Working Environment |
No powerful altrnatingmagnetic field. |
