Portabal PDA Crack Width Gauge with 0.01mm~6.5mm
Zoom Browse
Product Name: Portabal PDA Crack Width Gauge with 0.01mm~6.5mm
Product Numbers: CRGA-1001
Product Specifications: range: 0.01mm~6.5mm
Product Unit: 4GB large-capacity SD card
Product Remark: Large screen of PDA
Product Class:Measuring and Testing Instruments > Survey And Construction Instruments > Crack Detector and Gauge
Product Details
【DateTime:2014-04-25 Browse:】【Font: Big Mid Small】【Print】【Close

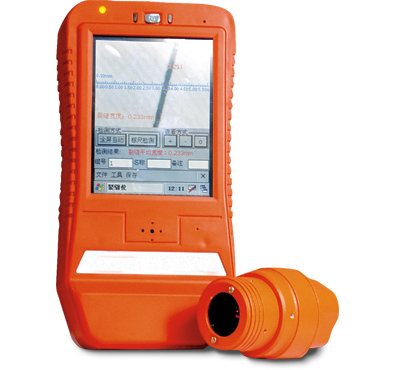

Portabal PDA Crack Width Gauge with 0.01mm~6.5mm
Part No: CRGA-1001
This type smart crack width tester is mainly used for the accurate crack width detection of bridges, tunnels, buildings, concrete pavement, and metal surface. The system can automatically shoot the measured cracks and realize real-time display to the crack graphics and width values, and save the crack graphics needed
Main features:
 Smart design: it is convenient to measure remote area with an extension rod;
 Smart detection mode; high-precision and intelligent computing technology; crack position without adjustment;
 Scale testing method: it is convenient to detect the same crack several times and compare the testing data;
 Large screen of PDA for the more accurate and clear image;
 Standard probe and high grade probe;
 Save crack images quickly with the snapshot button;
 4GB large-capacity SD card can store more than 100,000 data, powered by lithium batteries;
 Powerful post-processing software: it can achieve effective management for the crack measurement data and images and can also print the measuring reports conveniently.
Main technical Parameters:
Hardware:  Embedded ARM9 Hardware Platform, WinCe5.0 Opearaing System, True Color TFT Touch Screen.
Crack Width Test Range: Stndard probe: 0.01mm-6.5mm, High grade probe: 0.005mm-3.5mm
Accuracy: standard probel  less than +/-0.02mm, High grade probe: 0.01mm.
Imager Strage Format: BMP or JPEG.
Power supply: rechargeable Lithium Battery.
Working time: more than 28 hours
Working temperature: -10 degree-50 degree.
Working humidity: less than 90%RH
Size: 180mm*100mm*50mm
Net Weight: 1kg
