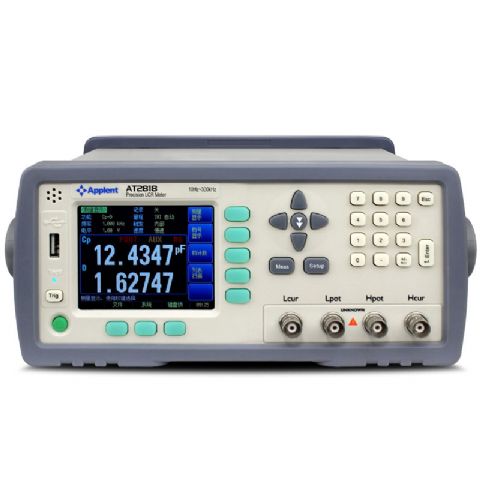

• Parameters:Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,Rs-Q,R-X,Z-θrad,Z-θdeg
• Monitor Parameters:Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%
• Accuracy:0.05% ±5
• Frequency:10Hz～300kHz(continuous frequency, frequency resolution 0.001Hz)
• Display Range
   L: 0.00001μH-999999H
   C: 0.00001pF - 999999μF
   R,Z: 0.00001Ω - 99.9999MΩ
   D,Q: 0.00001 - 999999
   Θ(deg): -179.999 ° -179.999 °
   Θ(rad) : -3.14159 – 3.14159
   Δ%: -999999% - 999999%
• Source Resistance:30Ω, 50Ω, 100Ω
• Range:Automatic, Manual, and nominal, 9 ranges
• Display Max:6 digital, principle parameter: 999999; sub parameter:999999; monitor parameter: 999999
• Signal Level:0.01V - 2.00V (10mV Step)
• Speed:30t/s, 10t/s, 6 t/s, 3 t/s 1-256 times average is available
• Comparator:14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX,2-bin principle parameter NG; Count Function: Max - 999999
• List Scanning:10 group frequency and level scanning measurement
• Adjustment:Open & Short circuit sweep frequency reset,3 point frequency reset and load calibration.
• Files:10 group files to save users setting, 1 group to save system data real-time
• Interface:RS232C, ExHandler interface,standard configuration USB Disc interface (article 10000 data)
• Others:LCR Automatic selection, keypad lock,SCPI instruction set, true-color TFT-LCD Display
• Power Supply
Voltage: 90V AC - 250V AC Frequency: 50Hz - 60Hz Max Power: 20VA
• Dimension & Weight:264mm (width)x107mm(height)x350mm(depth) 4kg
• What is in the package:
ATL501: Test cable
ATL607: Test Fixture
ATL600: Short-circuit device
ATL801: 232 Communication cable

Parameters	Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, Rs-Q, R-X, Z-θrad, Z -θdeg
Monitoring Parameters	Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%
Accuracy	0.05% ± 5 dgt
Frequency	10Hz - 300kHz (continuous frequency, frequency resolution 0.001Hz
Display Range	L: 0.00001μH to 999999H C: 0.00001pF to 999999μF R, Z: 0.00001Ω to 99.9999MΩ D: 0.00001 to 9.99999 Q: 0.00001 to 99999.9 Δ%: -999999% to 999999% θdeg: -179.999° to 179.999° θrad: -3.14159 to 3.14159
Source Resistance	30, 50 and 100Ω
Range	Automatic, manual and nominal 9 ranges
Display Max	6 digital, principle parameter: 999999 Sub parameter: 999999 Monitor parameter: 999999
Signal Level	0.01V to 2.00V (10mV steps)
Speed	30t/s, 10t/s, 6 t/s, 3 t/s 1 - 256 average is available
Comparator	14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX, 2-bin principle parameters NG; count function: MAX - 999999
List Test	10 ground frequency and level scanning measurement
Adjustments	Open and short circuit sweep frequency reset, 3 point frequency reset and load calibration
Files	10 group files to save users settings, 1 group to save system data in real-time
Interfaces	RS232C, EXHandler, standard configuration USB Disc interface (article 10000 data)
Other Information	LCR Automatic selection, keypad lock, SCPI instruction set, true-colour TFT LCD display
General Specs
Power Supply	Voltage: 90V AC - 250V AC Frequency: 50Hz - 60Hz Max Power: 20VA
Size	264mm (width) x 107mm (height) x 350mm (depth) Weight: 4kg
