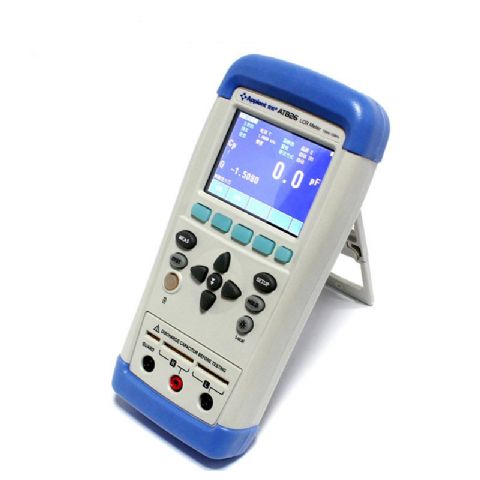

Handheld LCR Meter L C R Z D Q (deg) (rad)ESR
Zoom Browse
Product Name: Handheld LCR Meter L C R Z D Q (deg) (rad)ESR
Product Numbers: LCRM-AT825
Product Specifications: L, C, R, Z
Product Remark: 100Hz, 120Hz, 1kHz, 10kHz
Product Class:Measuring and Testing Instruments > Electronic test Instruments > LCR Meter
Product Details
【DateTime:2018-04-16 Browse:】【Font: Big Mid Small】【Print】【Close
Handheld LCR Meter L C R Z D Q (deg) (rad)ESR

Specification:

Parameters

L,C,R,Z,D,Q,(deg),(rad)ESR

Accuracy

0.2%

Frequency

100Hz,120Hz,1kHz,10kHz

Display Range

L: 0.01H-9999H D,Q: 0.0001 -9999 C: 0.01pF - 9999F (deg):-179.99-179.99 R,Z:0.0001 - 99.99M (rad):-3.1416 -3.1416

Source Resistance

100

Range

Automatic or Manual

Display Max

Principle Parameter: 49999 Sub Parameter49999

Signal Level

0.6Vrms

Speed

4 times/second, 1.5 times/second

Comparator

1 sets, compare main parameters

Adjustment

Open/short scan frequency reset for each range

Interface

Build-in Mini-USB interface(virtual interface) Charging interface
