Digital LCR Meter With Data Hold
Zoom Browse
Product Name: Digital LCR Meter With Data Hold
Product Numbers: LCRM-AT810
Product Specifications: L, C, R, |Z|, D, Q, θ
Product Class:Measuring and Testing Instruments > Electronic test Instruments > LCR Meter
Product Details
【DateTime:2018-04-12 Browse:】【Font: Big Mid Small】【Print】【Close

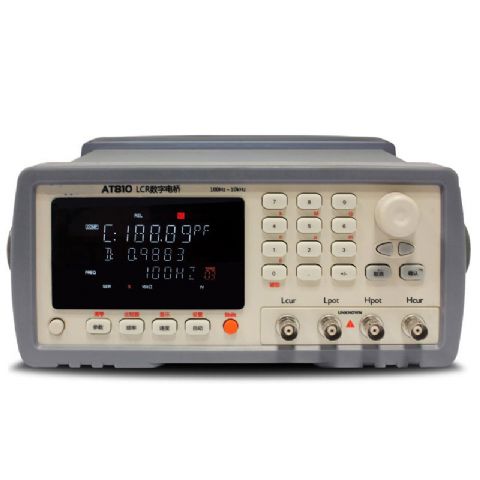

Digital LCR Meter With Data Hold
Features:
3-line VFD Display
Correction: OPEN and SHORT
View: ΔABS, Δ% or Sorting Result on 3rd Line
Comparator Function: 20 files, P1,P2,P3,NG,AUX, HI, IN, LO
Interface: RS232C and Handler
Optional Interface: USB
1000V DC Super-impact protection
Key lock function
Data Hold function

SPECIFICATIONS

Parameters

L, C, R, |Z|, D, Q, θ(deg), θ(rad)

Accuracy

0.1%

Frequency

100Hz, 120Hz, 1kHz, 10kHz

Display Range

L: 0.01μH-9999H

D: 0.0001 – 9.999             Q: 0.0001 – 999.9

C: 0.01pF - 9999μF           θ(deg): -179.99° - 179.99°

R,Z: 0.0001Ω- 99.99MΩ    θ(rad) : -3.1416 – 3.1416

Δ%: -9999% - 9999%

Max Reading

principle parameter: 99999; sub parameter: 99999

Source Resistance

30Ω, 100Ω

Range

Automatic and manual with 6 ranges

Signal Level

0.1V rms, 0.3V rms, 1V rms

Speed

15 times/second, 5 times/second, 3 times/second

Equivalent Circuit

In series and parallel

Result Display

3 parameters are displayed together: show, ΔABS, Δ%, D, Q, |Z | and sorting results

Adjustment

Open & short sweep frequency and short sweep frequency

Comparator

20 groups files record, 5-bin sorting, beep indication

Impact Protection

1000V/10μF, 600V/80μF or 400V/150μF capacitance under electricity impact protection

Interface

RS232C (SCPI programmable language) Handler interface

Others

VFD Display, keypad lock and data hold function

GENERAL FEATURES

Power Supply

Voltage: 198V AC - 250V AC  Frequency: 50Hz  Power: Max 15VA

Dimension & Weight

264mm (Width)x107mm (Height)x350mm (Depth) 4kg

ORDERING INFORMATION

Accessories

ATL501: Test cable

ATL607: Test Fixture

ATL600: Short-circuit device

ATS810: Data acquisition software
