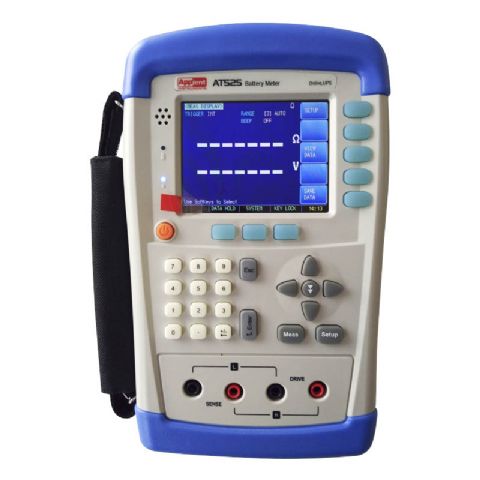

Portable Battery Resistance Meter 0.001mΩ~3.3Ω Low Ohm Meter
Main Features:
Portable design with dual-colour protective cast shell
Battery and external power supply
TFT-LCD display
Battery life of approximately 8 hours
Automatic power off when left idle
Double display: ΔABS, Δ% and sorting result
Comparator function: GD/NG
Auto zero adjustments for each range
Four terminal resistance measurements
Mini-USB interface
SCPI-compatible command sets
Keypad lock function
Data hold function
Adjustable background brightness
Specification
| Parameters |
AC resistance, DC voltage |
| Accuracy |
Resistance: 0.5% ± 5 digits
Voltage: 0.1% ± 5 digits |
| Measurement Range |
Resistance: 0.001mΩ to 3.3Ω
Voltage: 0.0001V to 60V |
| Signal Source |
AC: 1kHz
Open-Circuit Voltage: <30mV
Current: <15mA |
| Range |
Automatic, manual, nominal, 6 ranges |
| Speed |
20 times/second, 10 times/second, 3 times/second |
| Result Display |
ABS/PER/SEQ |
| Display Max |
Resistance: 3300
Voltage: 6000 |
| Max Resolution |
Resistance: 0.01mΩ
Voltage: 1mV |
| Adjustment |
Short-circuit reset for each range |
| Comparator |
Voltage comparison separately, resistance comparison separately, voltage and resistance combination comparison and GD/NG sorting result display. Adjustable beep |
| Trigger |
Internal, manual and remote |
| Test Terminal |
4 terminal shielding (2 check terminal and 2 driving terminal) and external shielding ground section |
| Interface |
Built-in mini-USB (virtual serial port
Charging interface
U disc interface |
