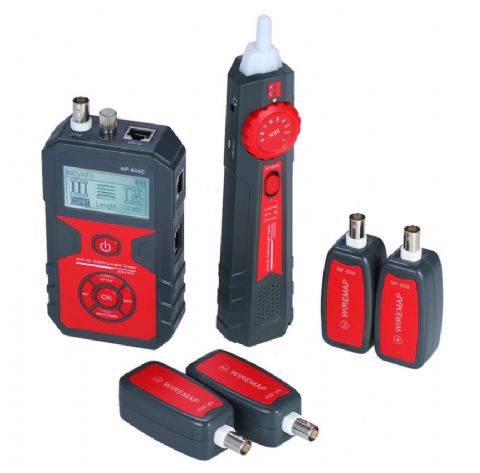

Cat 5 Cat 6 Cable Line Locator POE Switch Voltage

Features:
Cat 5, cat 6, and coaxial cable continuity test.
Measure cat 5, cat 6, and coaxial cable length up to 2000M.
Trace network cable and coaxial cable.
Port flash directly locate target cables connected with POE switch.
Red light check the fiber cable faults.
Detect the voltage on POE switch.
Big LCD color screen for easy reading.
Low battery indication and auto power off function, rechargeable lithium battery for more efficient work.

Specifications:
Material: ABS

NF-858 Transmitter:
Display: LCD 58x40mm, with backlight
Tone Frequency for Trace: 130KHz
Max. Distance of Trace: 2000M
Max. Distance of Cable Map: 2000M
Test Cable Type: Cat 5, Cat 6, coaxial
Compatible Connectors: RJ45, coaxial, VFL, MIC USB
Max. Signal Voltage: 9±1 Vp-p
Function and Faults LCD Display: LCD display (length, wire map, scan, short, no adapter, low battery)
Test Record Store: 6 groups
Voltage Protection: DC48V, 5mA

NF-858 Receiver:
Frequency: 130KHz
Low Battery Indicate: 3.5±0.2V

NF-858 Remote Unit:
Compatible Connector: RJ45, coaxial
Remote: 4

Built-in Lithium Battery: Emitter: 1 * 3.7V 1400mAh; Receiver: 1 * 3.7V 1400mAh
Emitter Size: 151 * 77 * 33mm / 5.94 * 3.03 * 1.30in
Receiver Size: 209 * 45 * 30mm / 8.23 * 1.77 * 1.18in
Remote Adapter Size: 85 * 33 * 25mm / 3.34 * 1.30 * 0.98in
Emitter Weight: 195g / 6.88oz
Receiver Weight: 119g / 4.21oz
Remote Adapter Weight: 36g / 1.28oz
Package Weight: 859g / 30.31oz
Package Size: 28.2 * 16.2 * 7.7cm / 11.10 * 6.38 * 3.03in
