Digital Three Phase Power Clamp Meter AC 0.0A-2000A
Zoom Browse
Product Name: Digital Three Phase Power Clamp Meter AC 0.0A-2000A
Product Numbers: CLME-2302
Product Specifications: AC 0.0A-2000A
Product Remark: Jaw 80mm×80mm
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Clamp Meters
Product Details
【DateTime:2012-09-03 Browse:】【Font: Big Mid Small】【Print】【Close
Large Caliber Three Phase Power Tester is well designed and manufactured for measuring three phase AC voltage, current, leakage current, phase between current and voltage, phase between phase voltage, frequency, power energy, phase sequence, active power, reactive power, apparent power, power. It is a multifunctional, digital, intelligent tester. Its large caliber 80mm×80mm can clamp electric cable of 80mm diameter, or 96mm×4mm flat cable and steel earth wires. It has all the functions of Large Caliber Leakage Clamp Meter and Micro Power Clamp Meter. Besides, it also has this functions such as distinguish transformer wiring group, inductive and capacitive circuits, test second circuit and bus differential protection systems, read the phase relationship between CTs of the differential protection, check the meter wiring right, repair lines and equipment, etc. Provide operators with a safe, accurate and convenient tester.

Measure three phase AC voltage, leakage current, current, active power, reactive power, apparent power, power, phase between current and voltage, phase between phase voltage, frequency, power energy, phase sequence

Technical Specification
Function
Measure three phase AC voltage, leakage current, current, active power, reactive power, apparent power, power, phase between current and voltage, phase between phase voltage, frequency, power energy, phase sequence
Power
6V DC(LR6×4 alkaline dry batteries, continuously working for 12 hours)
Test Mode
Clamp CT, integral mode
Clamp Size
80mm×80mm(can clamp electric cable of 80mm diameter, or 96mm×4mm flat cable and steel earth wires)
Current Range
AC 0.0A-2000A, Resolution: 0.1A
Power Range
AC 0.0KW-1200KW, Resolution: 0.1KW
Voltage Range
AC 0-600V, Resolution: 0.01V
Frequency Range
25Hz-100Hz, Resolution: 0.1Hz
Phase Range
0.0°-360.0°, Resolution: 0.1°
Power Factor Range
0.3-1.0(Capacitive or inductive) , Resolution: 0.001
Power Energy Range
0.0000KWh-72000KWh, Resolution: 0.0001KWh
Measured Wire Position
Measured wire at approximately the geometric center of the clamp
Data Storage
200 sets,  “FULL the memory is full ” symbol indicate
RS232 Interface
With RS232 interface, download data to computer for analysis and management
Communication Wire
RS232 communication wire, 1.8m
Frequency
50Hz ,60Hz automatic identification
Gear Shift
Automatic shift
Sample Rate
About 2 times/second
Line Voltage
Below AC 600V line measurement
Display Mode
LCD: 128dots×64dots; Display area: 43mm×29mm
Meter Size
Length 275mm × Width 145mm × Height 40mm
Backlight
Controlled by “ * " key
Data Hold
"HOLD" symbol appears
Overflow
"OL" symbol appears
Automatic Shutdown
Automatically shutdown about 15 minutes after power on to reduce battery consumption
Voltage Detection
Low battery symbol appears to remind the replacement of battery when the battery voltage drops below 5.2V.
Weight
1kg(with batteries and accessories)
Working Current
50mA with enabled backlight; 25mA with disabled backlight
Working Temperature and Humidity
-10℃-40℃; 80%rh
Storage Temperature and Humidity
-10℃-60℃; below 70%rh
Insulation strength
AC 3700V/rms(between core and shell)
Safety Specifications
IEC1010-1, IEC1010-2-032, 2 class of pollution, CAT Ⅲ(600V)
Accessories
Meter: 1 PC; Test Wires: 4 PCS (Yellow, Green, Red, Black), RS232 Data Wires: 1PC; Disk: 1 PC; Battery(LR6): 4PCS; Meter Box: 1 PC

package

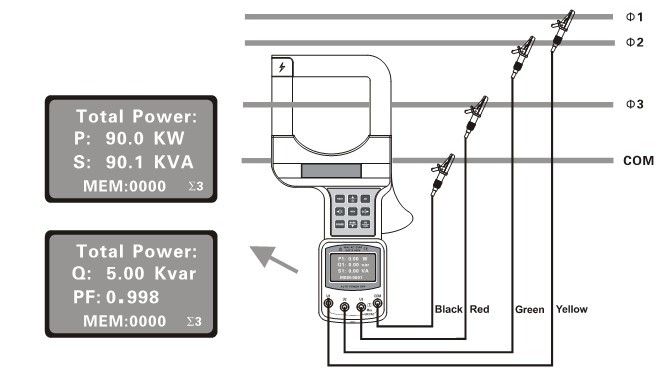

application
