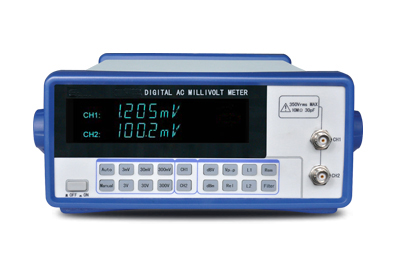

Digital AC Millivolt Meter With Two Independent Input Channels
Zoom Browse
Product Name: Digital AC Millivolt Meter With Two Independent Input Channels
Product Numbers: MIME-1530
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Digital Millivolt Meter
Product Details
【DateTime:2014-10-19 Browse:】【Font: Big Mid Small】【Print】【Close
Digital AC Millivolt Meter With Two Independent Input Channels
Part NO: MIME-1530
FEATURES
● Two independent input channels
● Frequency range 5 Hz to 5 MHz
● AC voltage 50 µV to 300 V
● Digital display : 31/2 or 41/2 digits
● Auto or manual ranging can be selected
● Standard accessory interface is RS-232

Model

MIME-1530

MIME-1550

Frequency Range

5Hz~3MHz

5Hz~5MHz

AC Voltage

Range

31/2 digits

41/2 digits

3mV

0.001mV

0.0001mV

30mV

0.01mV

0.001mV

300mV

0.1mV

0.01mV

3V

0.001V

0.0001V

30V

0.01V

0.001V

300V

0.1V

0.01V

Measure Range

AC Voltage

50uV~300V

dBV

-86dBV~50dBV(0dBV=1V)

dBm

-83dBm~52dBm(0dBm=1mW 600Ω)

Vpp

140uV~850V

Max.         Non-damage Input Voltage

Range

Max. input voltage

3V~300V

350Vrms(5Hz~5MHz)

3mV~300mV

350Vrms(5Hz~1KHz)35Vrms(1KHz~10KHz) 10Vrms(10 KHz~5MHz)

Best Accuracy(23±5 degree)

±2.5%±0.8%(5Hz—100Hz

±1.5%±0.5%(100Hz—500KHz)

±2%±1%(500KHz—2MHz)

±3%±1%(2MHz—3MHz)

±4%±2%(3MHz—5MHz)

Dimension &Weight

106×260×375 mm3/ Approx.3kg

Power

220(1±10%)V,50(1±5%)Hz,20VA
