Ground Resistance Tester
Zoom Browse
Product Name: Ground Resistance Tester
Product Numbers: EGRT-DY4300
Product Specifications: 0-1500 ohm
Product Unit: 4 pole measurement
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Earth Ground Testers
Product Details
【DateTime:2018-11-09 Browse:】【Font: Big Mid Small】【Print】【Close

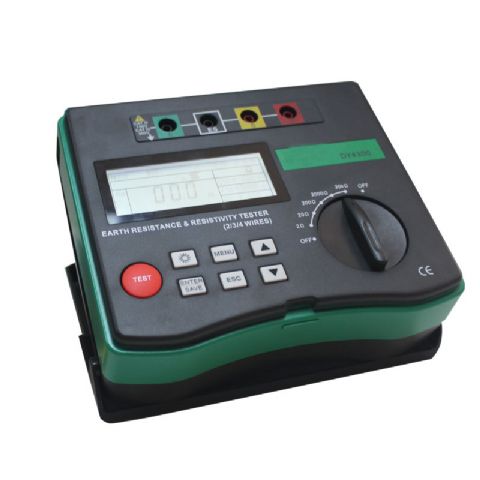

Digital Earth Meter Ground Resistance Tester

Specifications

(1)Model : EGRT-DY4300
(2)100 % Original New Products With Good Quality
(3)Made in china

Features

  • 4 pole measurement of earth resistance
  • soil resistivity measurement
  • LCD backlight

Specifications

4-Terminal Earth Resistance & Soil Resistivity Testers

ItemRangeAccuracyResolution
Earth/Ground Resistance 0Ω ~ 6.99Ω ±(3%+6digits) 0.01Ω
7.9Ω ~ 49.9Ω ±(2%+3digits) 0.1Ω
50Ω ~ 299.5Ω ±(2%+3digits) 0.5Ω
300Ω ~ 1500Ω ±(2%+3digits)
Maximal earth resistance at H-end: Rcmax=(0-100Re) and 50KΩ less value
Maximal ground resistance at S-end: Rpmax=(0-100Re) and 50KΩ less value
Additional measurement error of Rxmac and Rpmax: ±(3%+10digits)
Soil Resistivity 0.00Ωm ~ 99.99Ωm ±(3%+6digits) 0.1Ω
100Ωm ~ 999.9Ωm ±(2%+3digits) 0.1Ω
1000Ωm ~ 9999Ωm ±(2%+3digits)
10KΩm ~ 99.9KΩm ±(2%+3digits) 10Ω
100KΩm ~ 300KΩm ±(2%+3digits) 100Ω
Working LED Indicator yes
Function Symbol Display yes
Low Battery Warning yes
LCD Backight auto
