PC USB Function/Arbitrary Waveform Generator
Zoom Browse
Product Name: PC USB Function/Arbitrary Waveform Generator
Product Numbers: FUGE-1025G
Product Specifications: Wave frequency: DC~25MHz
Product Unit: Channels 1CH waveform output
Product Remark: Vertical Resolution 12 bit
Product Class:Measuring and Testing Instruments > Electronic test Instruments > DDS Function Generators
Product Details
【DateTime:2015-05-06 Browse:】【Font: Big Mid Small】【Print】【Close

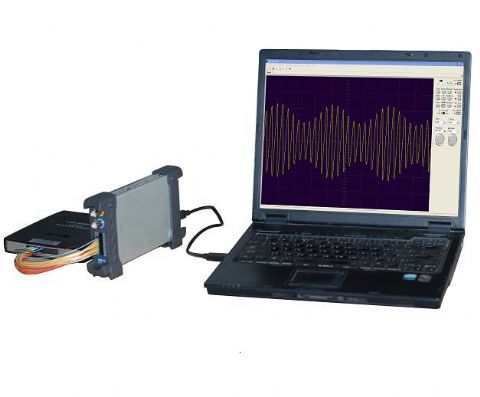

PC USB Function/Arbitrary Waveform Generator

Features:
    Cost-effectiveness; PC USB Function/Arbitrary Waveform Generator.
    Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
    Plug & Play USB interface, no external power source required; Similar operation interface to benchtop waveform generators, easy to use.
    It can be used disengaging the computer. Simulation of sensors and Real Word Signals. It will produce the needed arbitrary waveform signals when power on.
    200MSa/s sample rate, 12 bits of vertical resolution; 25Mz arbitrary waveform output. (Sine wave up to 75 MHz).

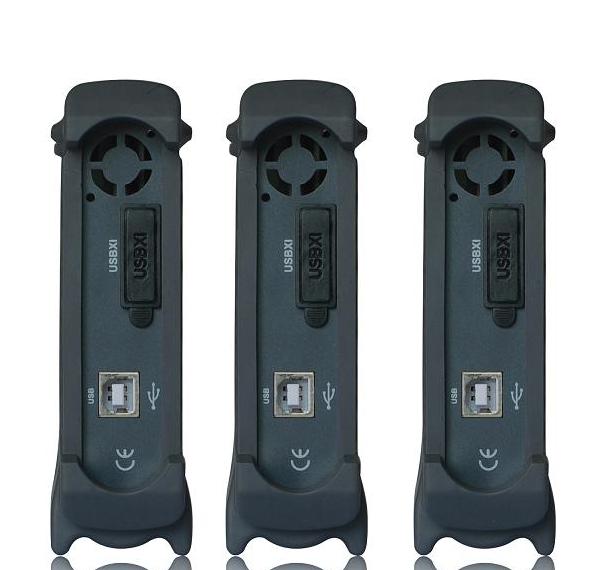

    One computer can be linked with several HANTEK1025G to expand Multi-channels.
    50 MHz Frequency Counter.
    Programmable Pattern Generator.
    Standard USBXITM interface, easyly inserts into USBXITM housing to make up a combination instrument.
    Support System: Win 7, Windows NT, Windows 2000, Windows XP
Arbitrary Waveform Output
Wave frequency DC~25MHz
DAC clock 2K~200MHz adjustable
Channels 1CH waveform output
Waveform Length 4KSa
Vertical Resolution 12 bit
Frequency stabilization <30ppm
Amplitude ±3.5V Max.
Output impedance 50 Ω
Output  current 50mA Ipeak=50mA
System Bandwidth 25M
Wave distortion -50dBc(1KHz),  -40dBc(10KHz)
Frequency Counter
Frequency area DC~50MHz
Input Amplitude  400mVpp~18Vpp
Coupling DC
Frequency precision ±Time Base Error ±1 Count
Input impedance > 100KΩ
Pattern Generator
Digit 12 Bits Pattern Generator and 6Bit digital In
Type LVCMOS
Working Environment
Temperature 0~70 centigrade
Humidity 0~95%
Weight 0.3Kg

1025G

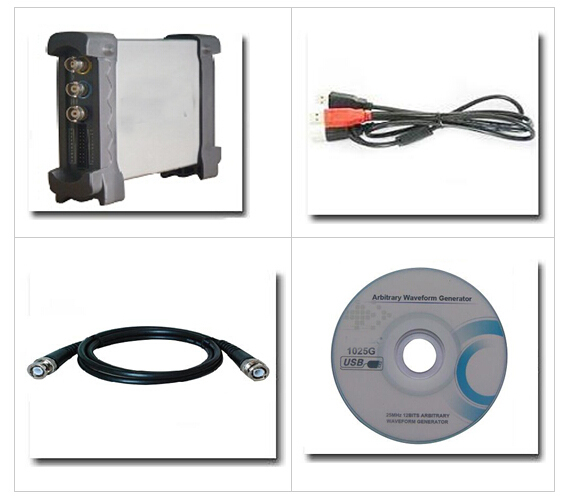

Package
