China Digital High/Low Voltage Clamp Meter

Product Name: China Digital High/Low Voltage Clamp Meter

Product Numbers: CLME-2404

Product Specifications: 0.00mA～600A (50/60Hz automatic)

Product Unit: 99 sets storeage

Product Remark: Automatic Shutdown

Product Class:Measuring and Testing Instruments > Electronic test Instruments > High/Low Voltage Clamp Meter

Product Details

【DateTime:2012-09-03 Browse:】【Font: Big Mid Small】【Print】【Close】

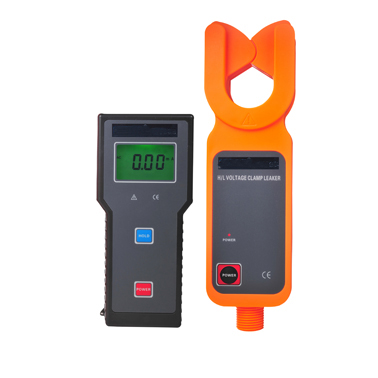

China Digital High/Low Voltage Clamp Meter

Part No: CLME-2404

Description:

H/L Voltage Clamp Meter specially designed and manufactured for high precision high voltage current measurement; use the latest CT technology and integrated mask digital technology; composed of special high voltage detector, wireless receiver and high voltage insulation rods. Wireless transmission can receive the measured data by penetrating storey building barriers or 30 meters. If not use insulated rods, it can also used as high-precision low-voltage clamp meter and leakage current meter, can accurately measure the 0.00mA ~600A current or leakage current.

Technical Specifications

Function	High voltage AC current measurement, low voltage AC current, current leakage measurement, online AC current measurement
Power Supply	DC6V alkaline dry battery（1.5V AAA*4）
Test Mode	Clamp CT, integral approach
Transmission Mode	Wireless transmission, the maximum distance of straight line transmission is about 30m
Display Mode	4 bit LCD display, with backlight function
LCD Dimension	47mm*28.5mm
Meter Dimension	LWH: 68mm245mm40mm
Clamp Dimension	33mm
Sampling Rate	2 times/second
Measurement Scope	0.00mA～600A (50/60Hz automatic)
Resolution	0.01mA
Shift	0.00mA～600A automatic shift
Accuracy (23℃±5℃, below 70%RH)	0.00mA～100.0A: ±1%±5dgt
Accuracy (23℃±5℃, below 70%RH)	100.0A～600.0A: ±2%±5dgt
Line Voltage	Below 60KV line test (with 5 insulation rods operation)
Data Memory	99 sets, memory process is shown by MEM , full storage is shown by blinking FULL
PEAK value maintaining	Automatically maintain the high test value, in usual testing mode, press key HOLD till the lighting of PEAK, that is, start PEAK to maintain this function.
Data Hold	In usual testing mode, press HOLD key to keep data, shown by “HOLD”
Data Access	“MR” indication, can access to all data
Overflow Display	Over-range overflow function: shown in “OL A”
Automatic Shutdown	15 minutes after boot
Battery Voltage	When battery voltage is lower than 4.8V, battery voltage is shown in low symbol to remind battery replacement
Meter Weight	Detector: 335g (with battery), the total mass of meter: 2.5kg (including insulation rod and battery)
Working Temperature and Humidity	-25℃～40 degree; below 80%Rh
Storage Temperature and Humidity	-10℃～60 degree; below 70%Rh
Insulation Rod Dimension	32mm, 1m/piece (5pieces)
Insulation Strength	AC 100kV/rms (between the 5^th insulation rod and high voltage current clamp core)
Structure	Anti-drip type Ⅱ
Safety Provisions	IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT Ⅲ(600V), IEC61326(EMC standard)
Accessories	Clamp Meter : 1 piece; receiver: 1 piece; meter box: 1 piece; insulation rod (1m): 5 pieces; battery (alkaline battery AAA): 4 pieces

Accessories

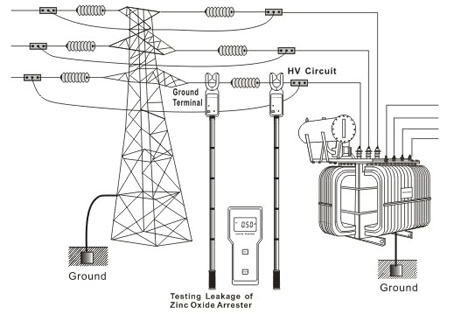

Application
