Logic Analyzer 34 Data Input Channels
Zoom Browse
Product Name: Logic Analyzer 34 Data Input Channels
Product Numbers: LOAN-5034
Product Specifications: Input Impedance: 200K (C=10p)
Product Unit: Max. Sample Rate: 500 MHz
Product Remark: Adjustable Logic Threshold
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Logic Analyzer
Product Details
【DateTime:2015-05-08 Browse:】【Font: Big Mid Small】【Print】【Close

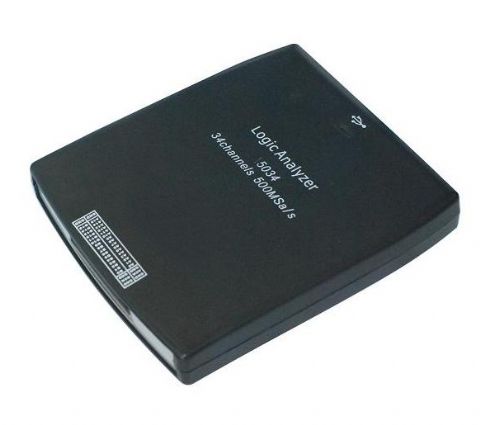

Logic Analyzer 34 Data Input Channels
Description:
     Up to 34 data input channels,High speed operation 500MHz,Continuously variable pre/post trigger position,Advanced Multi-Level Triggering, 6V to -6V Adjustable Logic Threshold, CAN, I2C, SPI and RS232 Interpreters, Built-in 250MHz Frequency Counter
Features:
    •Up to 34 data input channels.
    •High speed operation ,500MHz Timing-Mode (Internal Clock),200MHz State-Mode (External Clock)
    •Continuously variable pre/post trigger position,Advanced Multi-Level Triggering
    •+6V to -6V Adjustable Logic Threshold
    •CAN, I2C, SPI and RS232 Interpreters
    •Built-in 250MHz Frequency Counter
    •USB 1.1 and 2.0 Compatible
Specifications:
Channel 34
Input Impedance 200K (C=10p)
Input Voltage Range -60V~60V
Voltage Threshold Range -6V~6V
Max. Sample Rate 500 MHz
Max. Input Signal Bandwidth  150 MHz
Min Time Resolution 2ns
Sample Depth 2KSample
Memory Depth 68Kbits
Compatible Input TTL,LVTTL,CMOS,LVCOMS,ECL,PECL,EIA
Electrostatic Protected Area 15KV
Interface USB Port
Voltage Range 4.5V~5.5V
Power Max. 3.5W
Temperature Range Operation: -10°C~60°C; Storage: -40°C~60°C
Operating System WinXP/2000/Win7
Size&Weight 150(D) x 25(H) x 165(W) mm, about 390g
