True RMS Digital Multimeter Datalogging UT181A
Zoom Browse
Product Name: True RMS Digital Multimeter Datalogging UT181A
Product Numbers: UT181A
Product Specifications: DC Voltage (V): 60mV/600mV/6V/60V/600V/1000V
Product Unit: Frequency (Hz): 10Hz-60MHz ±(0.01%+5)
Product Remark: Peak Hold, Data loggin: 20000
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Multimeters
Product Details
【DateTime:2016-07-14 Browse:】【Font: Big Mid Small】【Print】【Close

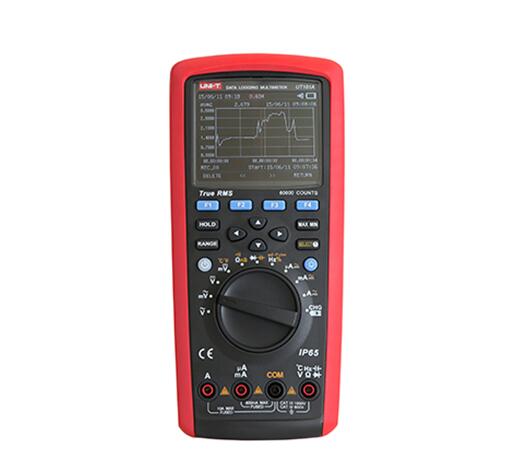

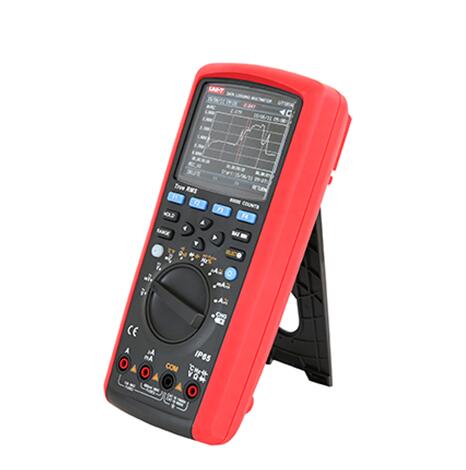

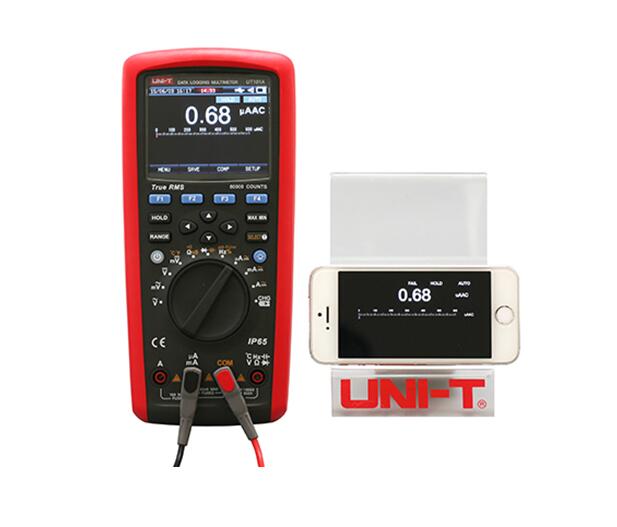

True RMS Digital Multimeter Datalogging UT181A

Display Count: 60000
Auto Range: √
Manual Range: √
True RMS: √
Bandwidth (Hz): 100kHz
AC + DC: √
Low Pass Filter: 1KHz(-3db)
dBV/dBm: √
Continuity Buzzer: √
Diode Around 3V: √
Duty Cycle 10% ~ 90%: √
Dual Temperature Measurement T1,T2, T1-T2,T2-T1: √
Data Hold: √
Peak Hold:√
Relative Mode: √
Data Logging: 20000
Trend Capture: √
MAX/MIN/AVG:√
Date Time Display: √
Data Comparsion: √
Display Type  3.5 Inches 64k Color TFT LCD (320 x 240): √
Backlight Adjustment: √
Analogue Bar Graph 61: √
USB Interface: √
Mis-Plug Alarm: √
Low Battery Indication: √
Auto Power Off: √
Re-Chargeable Battery: √
Input Protection: √
Input Impedance for DCV Around 10MΩ: √

Specifications:
Model: UT181A
DC Voltage (V): 60mV/600mV/6V/60V/600V/1000V ±(0.025%+5)
AC Voltage (V): 60mV/600mV/6V/60V/600V/1000V ±(0.3%+30)
DC Current (A): 600μA/6000μA/60mA/600mA/10A ±(0.08%+10)
AC Current (A): 600μA/6000μA/60mA/600mA/10A ±(0.6%+20)
Resistance (Ω): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.05%+2)
Admittance(nS): 60nS ±(2%+10)
Capacitance (F): 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF ±(2%+5)
Frequency (Hz): 10Hz-60MHz ±(0.01%+5)
Temperature (°C): -40°C~1000°C ±(1%+30)
Temperature (°F): -40°F~1832°F ±(1.5%+50)

General Characteristic:
Power: 7.4V 2200mAh Li-Battery(in-built)
LCD Size: 70mm x 52mm
Product Color: Red and Grey
Product Net Weight: 638.6 g
Product Size: 103mm x 225mm x 59mm
Package Size: 24 * 23.5 * 7cm / 9.5 * 9.3 * 2.6in
Package Weight: 1224g / 2.7lb

Package inlcudes:
1 * UNI-T UT181A True RMS Multimeter
1 * Pair Test Lead
2 * Point Contact Temperature Probe
1 * Temperature Adaptor
1 * Power Adaptor
1 * USB Interface Cable
1 * PC Software CD
1 * English Manual

UT181A

UT181A
