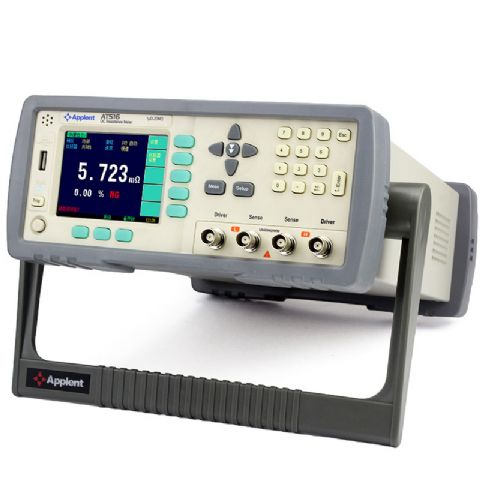

DC Resistance Meter Micro Ohm Meter
Features:
Measure DC resistance levels across a range of 1μΩ to 20MΩ
High accuracy measurements of 0.05%
10 ranges, automatic and manual
Adjustable sampling speed: 80 times/second, 15 times/second, 2 times/second
High brightness, ultra-clear four-colour VFD display
Double display: ΔABS/Δ/sorting result
Zero adjustment mode on all ranges
Comparator function stores up to 30 comparisons
Self-calibration functionality with temperature compensation and thermoelectromotive force compensation
Heavy current test mode
Four-terminal resistance test
Built-in RS232C and handler (EXT/IO) interfaces
Adjustable beeper and display
Internal, manual, external and remote triggers
SCIP-compatible command sets
Keypad lock function
Data hold function
Specification:
| Parameter |
DC resistance |
| Accuracy |
0.05% |
| Measurement Range |
1μΩ to 20MΩ |
| Measurement Current |
Max current: <1A |
| Range |
10 ranges, auto and manual |
| Speed |
80 times/second, 15 times/second, 2 times/second |
| Display |
Show/ΔABS/Δ%/Sorting results
|
| Display Max |
30000 |
| Adjustment |
Short circuit zero adjust for each range
REL function |
| Comparator |
14 built-in comparators, HI/IN/LOW/GD/NG display and output, adjustable beep and volume |
| Trigger |
Internal, manual, external or remote trigger |
| Interface |
RS232C, handler (PLC interface) |
| Temperature Compensation |
Accuracy: 0.2°C
Range: 0 to 80°C |
| Method |
4 terminal shielding (2 check terminal and 2 driving terminal) and external shielding ground section |
