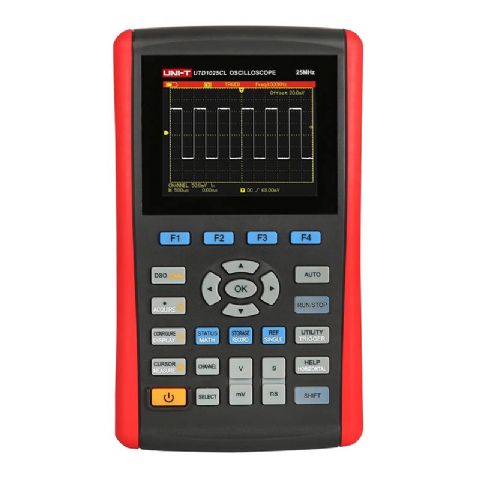

Low Cost Handheld Digital Oscilloscope
Zoom Browse
Product Name: Low Cost Handheld Digital Oscilloscope
Product Numbers: UTD1025CL
Product Specifications: 25MHz
Product Unit: 200MS/s
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Oscilloscope
Product Details
【DateTime:2018-06-19 Browse:】【Font: Big Mid Small】【Print】【Close

Portable Cheap Handheld Digital Oscilloscope

Features

1. Fully Auto Scale; Vertical Scale and Timebase automatically adjusted with the signal and without any manual interference;
2. Unique and powerful Auto Setup, quick and accurate to set up for signals with any DC component;
3. Wider voltage measuring range; Coupled with 10×probe with attenuation up to 200V/div;
4. Isolated USB for much safer communication;
5. White and black display for your option, perfect for use outdoors with strong light;
6. Intelligent local or network software update;
7. More than 8hours of continuous battery operation.
Specification:
Channels 1
Bandwidth 25MHz
Sample Rate 200MS/s
Rise Time ≤14ns
Memory Depth 12kpts
Vertical Sensitivity 5mV/div~20V/div
Timebase Range 10ns/div~50s/div
Storage Bitmap, Setup, Waveform
Trigger Modes Edge, Pulse, Video, Slope
Interface Mini USB
Multimeter Specifications Range Best Accuracy
DC Voltage (V) 400.0mV/ 4.000V/ 40.00V/ 400.0V ±(1%+5)
AC Voltage (V) 400.0mV/ 4.000V/ 40.00V/ 400.0V ±(1.2%+5)
DC Current (A)
(External Convertor)
400.0μA/ 4000μA ±(1.2%+5)
40.0mA/ 400mA ±(1%+5)
10A ±(1.5%+5)
AC Current (A)
(45Hz~400Hz)
(External Convertor)
400.0μA/ 4000μA ±(2%+5)
40.0mA/ 400mA ±(1.5%+5)
10A ±(2.5%+5)
Resistance (Ω) 400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ ±(1.2%+5)
  40.00MΩ ±(1.5%+5)
Capacitance (F) 51.20nF/512.0nF/5.120μF/51.20μF/100μF ±(3%+5)
Display Count 4000
General Characteristic
Power Lithium Battery: 7.4V 3600mAh;
DC Adapter: 100~240V 50/60Hz input, 9V 4A Output
LCD Size 3.5 Inches 64K Color TFT LCD, 320×240
Product Color Red and Grey
Product Net Weight 0.9 Kg
Product Size (W×H×D) 199mm × 118mm × 49mm
Standard Accessories DC Adaptor, Test Lead, Probe×1 (1×,10× switchable), Current-to-Voltage Convertor, Power Cord, USB Cable,PC Software CD

Package:
DC Adaptor,
Test Lead, Probe×1 (1×,10× switchable),
10A Current Divider,
Power Cord,
USB Cable,
PC Software CD
