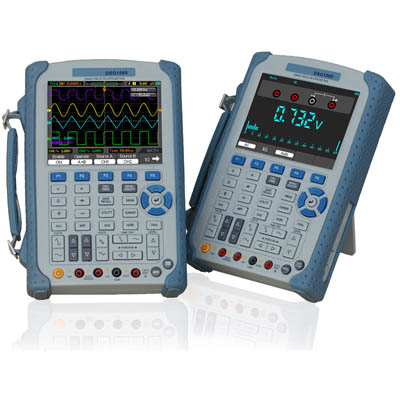

•Excellent industrial design. Direct key for each channel, time base, trigger and DMM, easy to operate.
    •Large 5.7 inch TFT color LCD display, LED backlight, display clearly.
    •USB host/device 2.0 full-speed interface, support removeable disk, RS-232/LAN option, easy to control by PC or long-distance.
    •High bandwidth 60MHz-200MHz oscilloscope, and 6000 COUNTS high precision DMM.
    •High refresh rate. High real-time sample rate 250MSa/s or 500MSa/s. 50GSa/s equivalent-time sample rate.

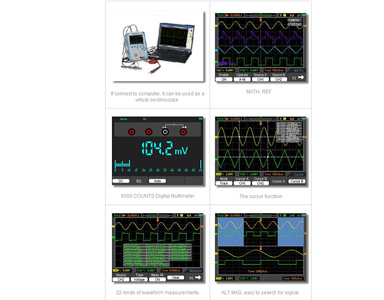

    •FFT, +, -, x, ÷, X-Y, 22 types of auto measurements, PASS/FAIL check, easy to use on production line.
    •Multiform trigger mode, 2 separate time base in ALT trigger mode, easy to observe 2 signals with different frequency.
    •1000 waveforms save and record.
    •Battery power operation (installed) and industrial design.
    •Save waveform in the following: jpg/bmp graphic file, MS excel/word file.
    •Dimensions (mm): 240(L)x165(W)x50(H), be carried easily.
    •Labview\VB\VC Second Design instance.

Model	OSCI-DSO1200	OSCI-DSO1060
Bandwidth	200MHz	60MHz
Channel	2
Real-Sample Rate	500MSa/s	250MSa/s
Equivalent Sample Rate	50GSa/s
Record Length	32K
Rish time	≤1.7ns	≤5.8ns
Timebase Accuracy	±50ppm
Time Base Range	5ns/div-1000s/div
Video Help	--
SD Card	--
Input Impandance	1MΩ ΙΙ 15pF
VOLTS/DIV Range	10mV/div～5V/div
A/D Converter	8bit
Position Range	±50V(5V/div), ±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div), ±400mV(20mV/div～2mV/div)
DC Gain Accuracy	±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div
Bandwidth Limit	20MHz
Trigger Types	Edge, Video, Pulse, Alternative
Trigger Source	CH1, CH2
Math	+, -, x, ÷, FFT, Invert
Cursor Measurement	Voltage difference between cursors: △V; Time difference between cursors: △T; Reciprocal of △T in Hertz (1/ΔT);
Auto Measuerment	Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot
The float voltage between BNC and Ground	--
The float voltage between each Channel	--
The float voltage between Multimeter and Ground	--
between input Ports directly	--
Input by 10:1 probe	--
DMM Max. Resolution	6,000 Counts
Testing Modes	Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage	AC: 600V, DC: 800V
Max. Input Current	AC:10A , DC: 10A
Max. Input Impandance	10MΩ
Display	5.7" TFT 16K Color Display, 320*240 dots
Size	245mm x 163mm x 52mm
Weight	1.3KG(Without Package)

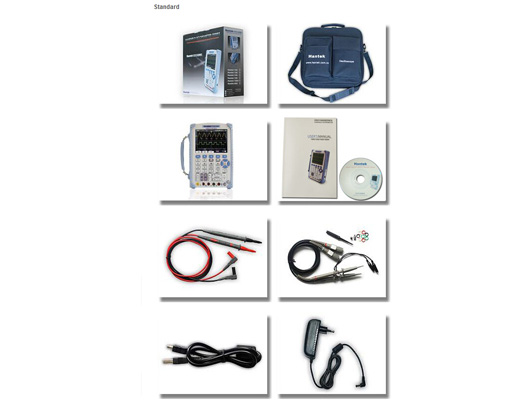

Standard Probe	PP200x2	PP80x2

DMM Mode
Max. Resolution	6000 Counts
DMM Testing Modes	Voltage, Current, Resistance, Capacitance, Diode & Continuity
Max. Input Voltage	AC:600V, DC: 800V
Max. Input Current	AC: 10A, DC:10A
Input Impedance	10MΩ
DMM TrendPlot	1.2M  Point
Range	Resolution	Accuracy	Resolution
DC Voltage	60.00mV	±1%±3 digit	10uV
	600.0mV		100uV
	6.000V		1mV
	60.00V		10mV
	600.0V		100mV
	800V		1V
AC Voltage	60.00mV	±1%±3 digit	10uV
	600.0mV		100uV
	6.000V		1mV
	60.00V		10mV
	600.0V		100mV
DC Current	60.00mA	±1%±5 digit	10uA
	600.0mA	±1.5%±5 digit	100uA
	6.000A		1mA
	10.00A		10mA
AC Current	60.00mA	±1%±5 digit	10uA
	600.0mA	±1.5%±5 digit	100uA
	6.000A		1mA
	10.00A		10mA
Resistance	600Ω	±1%±3 digit	0.1Ω
	6.000KΩ		1Ω
	60.00KΩ		10Ω
	600.0KΩ		1KΩ
	6.000MΩ		10KΩ
	60.00MΩ	±1%±5 digit	100KΩ
Capacitance	40.00nF	±2%±5 digit	10pF
	400.0nF		100pF
	4.000uF		1nF
	40.00uF		10nF
	400.0uF		100nF
	Attention: the smallest capacitance value that can be measured in 5nF
Diode	0V~2.0V
ON-OFF test	<10Ω
