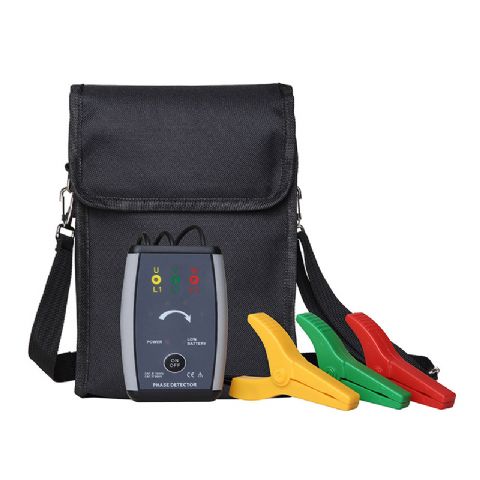

Non-contact Phase Sequence Detector
The detector is a major breakthrough in traditional phase sequence detection methods.The traditional phase sequence detection must be to open the three-phase wire terminal, the phase sequence table of the three exposed clips or test pins are connected to the exposed three fire lines. The FR2060 uses clamp-type non-contact inductive measurement. It does not need to open the wire, and does not need to touch the high voltage exposed live wire. It can directly detect the phase sequence by sandwiching the three super induction high-insulation clamps to clamp the three-phase live wire insulation sheath.At the same time, the acousto-optic indicates the normal or reverse phase state of the phase sequence of the three-phase power supply.
Function:
Phase detection (normal phase, reverse phase), live line inspection, simple electricity inspection, phase loss judgment, circuit breaker search, breakpoint location, and line maintenance
Specification:
| Function |
Phase detection (normal phase, reverse phase), live line inspection, simple electricity inspection, phase loss judgment, circuit breaker search, breakpoint location, and line maintenance. |
| Power |
9V battery, continuous use time is about 70 hours. |
| Measure mode |
Non-contact clipping method |
| Wire position |
The measured wire is in the center of the jaw |
| Frequency |
50Hz/60Hz Automatic Identification |
| Live electricity range |
AC70～1000V, 45/65Hz（Sine wave continuous input），Conducted electrostatic detection |
| Measuring the highest voltage |
AC1000V |
| Clamp wire size |
Outside diameter ø1.5mm～ø48mm |
| Display |
(Positive phase)4 phase detector lights are turned on in a clockwise direction |
| (Reverse phase)4 4 phase detection lights are turned on counterclockwise; |
| (Live electricity)L1, L2, L3 lights in the voltage setting range |
| (Lack of phase)L1 or L2 or L3 lights are not lit |
| (Open circuit)L1 or L2 or L3 lights are not lit |
| Beep |
(Positive phase)The instrument emits intermittent short beep |
| (Reverse phase)The instrument emits a continuous long beep。 |
| Battery check |
After the power is turned on, the power indicator is on; the battery is low; the LOW BATTERY lamp is on |
| Clamp lead length |
0.6m |
| Instrument size |
L 117.6mm×W 81mm×T 25mm |
| Automatic shut-down |
After about 6 minutes of power on, the meter automatically shuts down to reduce battery consumption. |
| Battery voltage |
When the battery voltage drops to about 5.2V, the battery voltage is low symbol to remind to replace the battery |
| Instrument weight |
Instrument：260g(including battery) |
| Maximum rated power |
300mVA |
| Working temperature and humidity |
-10℃～55℃; below 80%rh |
| Storage temperature and humidity |
-20℃～60℃; below 90%rh |
| Insulation strength |
3.7kVrms |
| Suitable for Safety Regulations |
EN61010-1: 2001、EN61010-031:2002, pollution grade 2、CAT Ⅲ(600V), Instant overvoltage 6000V |
