UT283A Single Phase Power Quality Analyzer
Zoom Browse
Product Name: UT283A Single Phase Power Quality Analyzer
Product Numbers: UT283A
Product Specifications: V: 10V~1000V AC/DC
Product Unit: Frequency: 40~70Hz
Product Remark: Single phase
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Power Quality Analyzer
Product Details
【DateTime:2016-07-17 Browse:】【Font: Big Mid Small】【Print】【Close
UT283A Single Phase Power Quality Analyzer


pecifications Range Best Accuracy
Model   UT283A
Voltage (V) 10V~1000V AC/DC ±0.5% Udin
AC Current (A) 10A/100A/1000A ±0.5% f.s.
Frequence (Hz) 40~70Hz ±50mHz
Power (W) >15% S ± 1 %S
Power factor 0~1.0 ± 0.02
Energy (Wh) 0~9999MWh ± 1.5 %rdg
Crest factor 1.0 to 10.0 ±5 %
Voltage harmonics or Inter harmonics Um ≥ 3% Udin(1~51th,step 0.5th) ±5% Urms
Um ≤ 3% Udin(1~51th,step 0.5th) ±0.15% Udin
Current harmonics or Inter harmonics Im ≥ 10% I f.s(1~51th,step 0.5th) 5% Irms
Im ≤ 10% I f.s(1~51th,step 0.5th) ±0.5% f.s.
Power harmonics (1~51th,step 1th) Calculated based on voltage and current amplitude and phase accuracy
Transients ±(2000 V~ 6000 V Peak), Fsample=2MHz ±5% Rdg.±5%Fs
Dips  Swell & Interrupt 0~1000V AC Udin± 1 %
AC Inrush Current (A) 10A/100A/1000A  ±1%f.s
Resistance (Ω) 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ ±(1.0%+3)
Capacitance (F) 60nF/600nF/6μF/60μF/600μF ±(4 %+20)
Features
True RMS   √
Harmonic Analysis Up to 51th √
Flick Measure 10 Minutes PST and PLT value √
Voltage Ratio   √
Current Ratio   √
Event Capture   √
Trend Capture   √
Data Logging 8GB √
USB Interface   √
Backlight Adjustment   √
Low Battery Indication   √
Input Protection   √
General Characteristic
Power 7.4V 3600mAh Li-ion Battery
LCD 3.5 Inches 64k Color TFT LCD (320 x 240)
Product Color Red and Grey
Product Net Weight 808.4g
Product Size 199mm × 118mm × 49mm
Standard Accessories Power Adaptor, Test Lead, Current Clamp(10A/100A/1000A), USB Cable, Software CD, SD Card (8GB)
Standard Individual Packing Gift Box, Carrying Bag, English Manual
Standard Quantity Per Carton 4 PCs
Standard Carton Measurement 490mm × 380mm × 310mm (0.058 CBM Per Standard Carton)
Standard Carton Gross Weight 10KG

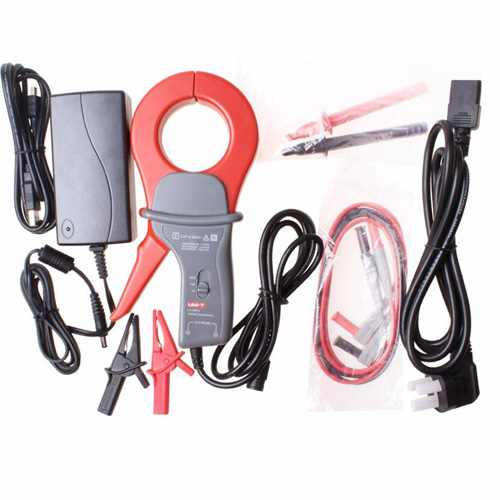

Package:
Power Adaptor,
Test Lead,
Current Clamp(10A/100A/1000A),
USB Cable,
Software CD,
SD Card (8GB)

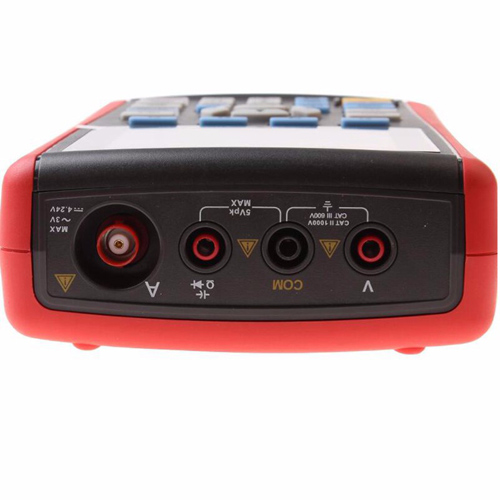

Power quality analyzer

package of analyzer
