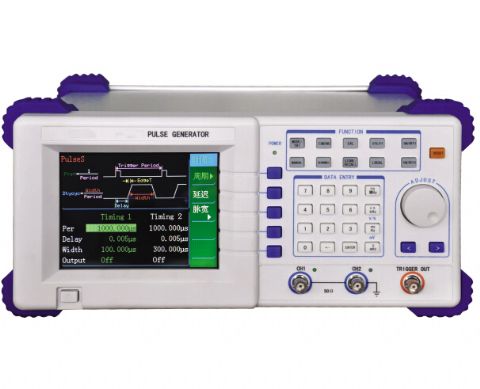

Pulse Generator With Double Channels
Features:
Direct digital synthesis technology
Crystal Oscillation reference
High accurate time and frequency
Count burst or single burst both can be selected
Multiple output channels and EXT
Triger/Frequencey standard input channels
Data storage and recall
Optional GPIB and USB interface.
Specifications:
Channel Double channels
Pulse single pulse and double pulse, logic positive and logic negative,
Time
Pulse cycle range: 20ns ~ 10000s
Time interval range: 5ns ~ 10000s
Resolution: 5ns( low range) 10μs(high range)
Time interval error: ±(T×5×10-5+ 5ns) (low range); ±(T×5×10-5+ 10μs) (high range)
Amplitude Offset
Amplitude range: 50mV ~ 5V (50Ω)
Offset range: 50mV ~ 5V (50Ω)
Output impedance: 50Ω
High-voltage Power Amplifier
Max output voltage: 50V
Max output current: 120mA
Voltage gain: 20dB
Input impedance: 50Ω
Trigger
Trigger mode: internal, external, manually
External trigger input: frequency: 1Hz ~ 10MHz(square) amplitude: 1Vp-p ~ 20Vp-p
Input impedance: ≥100kΩ
Burst
Burst count: 2 ~ 65000 cycles Burst mode: continuous, single
Exterior Standard Frequency Input
Frequency: 10MHz
Amplitude: ≥0.5Vrms
Power
AC220V(1±10％), 50Hz(1±5％)
Dimension and weight
Dimension: 330 ×155 ×300 mm
Weight: Approx.4.2kg
