Portable Handheld Spectrum Analyzer 9kHz~2GHz
Zoom Browse
Product Name: Portable Handheld Spectrum Analyzer 9kHz~2GHz
Product Numbers: SPAN-1001
Product Specifications: Range: 9kHz-2GHz
Product Unit: Resolution bandwidth: 1Hz~3MHz
Product Remark: 00kHz~1.5GHz tracking generator
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Spectrum Analyzers
Product Details
【DateTime:2014-08-08 Browse:】【Font: Big Mid Small】【Print】【Close

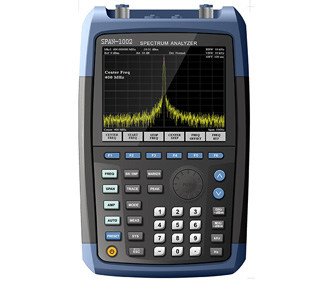

Portable Handheld Spectrum Analyzer 9kHz~2GHz
Part No: SPAN-1001

Description:
        A spectrum analyzer is a laboratory instrument that displays signal amplitude (strength) as it varies by signal frequency. The frequency appears on the horizontal axis, and the amplitude is displayed on the vertical axis. To the casual observer, a spectrum analyzer looks like an oscilloscope and, in fact, some lab instruments can function either as oscilloscopes or spectrum analyzers. SPAN-1001 series spectrum analyzer has excellent performance in technical indicators compare with current spectrum analyzer in market. 6.5 inch TFT screen, Pc connection for display as convenience as the desktop spectrum analyzer, also can be integrated into your system to develop a spectrum analysis. New design of SPAN-1001 modular bring convenience for user while saving costs. Universal USB, LAN connection are easy for machine measurement. With complete SCPI command set, quick set up and upgrade integrated test system.

Features
- Provided most handheld spectrum analyzer test function with superior technical index
- Frequency range: 9kHz~2GHz
- Optimum sensitivity: -158dBm
- Resolution bandwidth: 1Hz~3MHz
- AM/FM demodulation, frequency count
- 100kHz~1.5GHz tracking generator
- 6.5 inch highlight TFT color LCD
- 6000mAH li-ion battery, up to 4 hours durable used.
- Structure Size: 288x182x142mm
- PC control software easy to save and manage test data.
- Weight: less than 3kg



Frequency range

9kHz~2GHz

Frequency resolution

1Hz

Frequency readout accuracy

±frequency marker count×frequency benchmark precision+1%×sweep width+10%×RBW+0.5×[sweep width/sweep point-1]+1Hz

Internal standard10MHz



Aging rate

<1ppm/year

Temperature stability

<0.5ppm  15 degree~35 degree



Resolution bandwidth

range



1Hz~500kHzfrom 1 to 10 serial stepping), 1MHz, 3MHz

selectivity(60dB/3dB)

RBW≤500kHz

<5:1 typical value

accuracy

<5%   typical value

Vedio bandwidthVBW



10Hz~3MHz



Displayed average noise level 1Hz Resolution bandwidthradio-frequency attenuator 0dB

frequency

Pre-amplifier off

Pre-amplifier pen

100kHz-1MHz

-100dBm

-120dBm

1MHz-10MHz

-130dBm

-150dBm

10MHz-1GHz

-135dBm

-155dBm

1GHz-2GHz

-131dBm

-151dBm



Phase noise





Frequency offset 30kHz  -90dBc/Hz





Frequency offset 100kHz  -100dBc/Hz





Frequency offset 1MHz  -110dBc/Hz



Sweep time

Sweep width 100Hz≤SPAN≤3.6GHz



10ms~3000s

0 sweep width



1ms~3000s

Sweep mode



Serial, single



The trigger

Trigger source



Free, video, external

External trigger level



5V TTL level, the nominal value



Frequency counter

resolution



1Hz,10Hz,100Hz,1kHz

Uncertainly angle



Frequency count*frequency benchmark accuracy +counter resolution



Range frequency20 degree~30 degree

Synthetical range frequency90%

Input single range 0dBm~-50dBm

±1.5dB



range

Maximum permissible input

average continuous power

+27dBm

Maximum input dirct current voltage



50Vdc

Input attenuator range



0~39dB3dBstepping

1dBpoint of compression



+7dBm



Stray and residual response

TOICTB

>30MHz

+13dBm

SHIcos)



+30dBm

Input related stray single



<-60dBc

residual response



<-85dBm



Trancing source(optional)

Frequency range



100kHz~1.5GHz

Output power



-30dBm ~ 0dBm  1dBstepping

Output flatness



±3dB



Demodulation (optional)

Audio Demodulation

frequency range

100kHz - 2GHz



Demodulation type

FM/AM

AM measurement

frequency range

10MHz - 2GHz



modulation rate

20Hz - 100kHz



Modulation rate accuracy

1Hz modulation rate, nominal value (modulation rate of <1kHz)

<0.1% modulation rate, nominal value (modulation rate 1kHz)



modulation depth

5%-95%



Modulation rate accuracy

± 4%, nominal value

FM measurement

frequency range

10MHz-2GHz



modulation rate

20Hz-100kHz



Modulation rate accuracy

1Hz modulation rate, nominal value (modulation rate of <1kHz)

<0.1% modulation rate, nominal value (modulation rate 1kHz)



Frequency deviation

20Hz-200kHz



Frequency accuracy

± 4%, nominal value



common parameter

Radio requency input/output



SMA female50Ω

USB



USB 1.1equipment side

LAN



10/100 Base-TRJ-45connector

AM/FM demoduline





Benchmark input/out put

10MHz, BNC female

Input power  0dBm~ +10dBm

output  0dBm±2dB

Maximum size



288×182×142mm

weight



Less  than2.8kg

Operating temperature



0 degree~40 degree

Storage temprature



-40 degree~+70 degree

power

battery



7.4V  6000mAh

adapter

input

100V~240V  50/60Hz  1.5A

output

9V   4000mA

Power consumption



13W

Inside data storage



128MB

Upper computer software

USB,LAN

Pc display test
