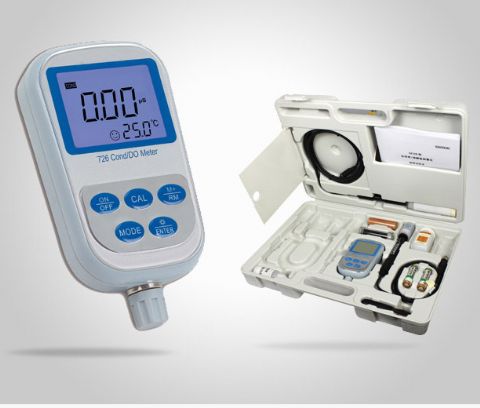

Portable Conductivity/Dissolved Oxygen Meter
Zoom Browse
Product Name: Portable Conductivity/Dissolved Oxygen Meter
Product Numbers: PHME-726
Product Specifications: (0 ~ 40.00)mg/L(ppm) (0 ~ 200.0)%
Product Unit: .Double-parameter meter
Product Remark: polarographic type dissolved oxygen electrode
Product Class:Measuring and Testing Instruments > Environmental Test > Conductivity Meter
Product Details
【DateTime:2013-12-19 Browse:】【Font: Big Mid Small】【Print】【Close
 Portable Conductivity/Dissolved Oxygen Meter
Description:
1.Conductivity measurement mode has the function of non-linear temperature compensation for high purity water.
2.Measurement mode of Dissolved oxygen has the function of automatic temperature compensation, automatic salinity compensation and manual air pressure compensation.
3.New polarographic type dissolved oxygen electrode can measure temperature, salinity and dissolved oxygen simultaneously, equipped with special dissolved oxygen electode calibration set, polarization only for 3~5 min.
4.Meter meets IP57 rating, equipped with calibration solution and portable case.
5.Double-parameter meter, equipped with conductivity electrode and dissolved oxygen electrode, automatic identification of electrode by meter.
6.Built-in microprocessor chips, intelligent functions such as automatic calibration, automatic temperature compensation, data storage, function set-up, automatic power-off and low voltage display.
7.Automatic identification of 8 conductivity standard calibration solutions, two options of standard calibration solutions: Europe and America series and China series.
8.Adopt advanced conductivity measurement technology, use conductivity electrode of constant K=1, only need one point calibration and meet the measurement precision requirement of 0.5μS/cm ~ 200 mS/cm.
9.Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
Specifications:
Category Product Name Basic features and specifications
Conductivity Measuring range Conductivity:(0.00~19.99)μS/cm (20.0~199.9)μS/cm (200~1999)μS/cm (2.00~19.99)mS/cm (20.0~199.9)mS/cm TDS: (0 ~ 100)g/L Salinity: (0 ~ 100)ppt Resistivity:(0 ~ 100)MΩ·cm

Resolution

0.01/0.1/1μS/cm 0.01/0.1 mS/cm
Accuracy Meter:+/-1.0% FS, Overall:+/-1.5% FS

Temp. compensation range

(0 ~ 50)℃(manual)

Electrode constant

0.1 / 1 / 10 cm-1

Benchmark temperature

25℃,20℃ and 18℃
Dissolved Oxygen

Measuring range

(0 ~ 40.00)mg/L(ppm) (0 ~ 200.0)%

Resolution

0.1/0.01 mg/L(ppm) 1/0.1 %

Accuracy

Meter:±0.10 mg/L, Overall:±0.40 mg/L

Response time

≤30 s(25℃, 90%response)
Residual current ≤0.1 mg/L
Temp. compensation range (0 ~ 45)℃(automatic)
Salinity compensation range (0 ~ 45)ppt(automatic)

Atmospheric pressure compensation range

(66 ~ 200)kPa (manual)

Automatic calibration

Air saturated by water; water saturated by air

Electrode type

Polarogram type
Other Technical Parameters

Data storage

200 groups
Storage content Series number, measuring value measuring unit and temperature,

Power

Two AA batteries (1.5V *2)

Size and weight

meter:(65*120*31)mm/180g:Suitcase: (360*270*76)mm/1.6Kg
Quality and safety certification ISO9001:2000, CE and CMC
Working Condition

Environment temperature

5 ~ 35 ℃(0.01grade)

Environmental humidity

≤85%

IP rating

IP57 Dustproof and waterproof


Standard Package:
1. Model 726 Conductivity/DO meter  1set
2. 2301-S plastic conductivity electrode  1pcs
3. DO500 DO electrode 1pcs
4. 1413μS/cm conductivity standard solution (50mL) 1btl
5. DO503 membrane cap (DO electrode use)  3个
6. DO502 DO electrode inner solution (30mL) 1pcs
7. Cathode polishing paper 1pcs
8. Screw driver  1pcs
9. Spare AA batteries  2pcs
10. Operation manual  1pcs
11. Carrying case  1unit

Optional Accessories:

Accessory Category

Description

Specifications

Conductivity electrode

2301-S Plastic conductivity electrode

K=1.0 cm-1,ATC, suited for conductivity measurement of general water solution, 8 pin connector.

DJS-0.1-S Glass conductivity electrode

K=0.1cm-1,ATC,suited for pH measurement of of high purity water, 8 pin connector.

Glass flow cell

Match DJS-0.1-S electrode.

DO electrode

DO500 DO electrode

Polargrafic DO electrode, suited for application in lab and field, 8 pin connector.

DO electrode accessory

DO503 DO electrode membrane cap

Combined membrane cap, special for DO500 DO electrode, specification: 3 units per group.

DO502 DO electrode electrolyte

Supplement electrolyte, special for DO500 DO electrode, specification: 30mL/bottle.

DO501 negative electrode polishing paper

Polishing paper,special for cleaning negative electrode of DO500 DO electrode, specification:2 pcs/group.

Conductivity standard

84 μS/cm conductivity standard

500mL/250mL/50mL(bottle)

1413 μS/cm conductivity standard

500mL/250mL/50mL(bottle)

12.88 mS/cm conductivity standard

500mL/250mL/50mL(bottle)

146.6 μS/cm conductivity standard

500mL/250mL/50mL(bottle)

1408 μS/cm conductivity standard

500mL/250mL/50mL(bottle)

12.85 mS/cm conductivity standard

500mL/250mL/50mL(bottle)

Portable case

Small portable case(255*210*50)mm

Match single electrode.

Big portable case(360*270*76)mm

Match multi- electrode
