Economic Halogen Leak Detector
Zoom Browse
Product Name: Economic Halogen Leak Detector
Product Numbers: GADE-6000
Product Specifications: Maximum sensitivity: 6 gr/yr
Product Unit: Fixed probe length: 20cm
Product Remark: Reset time: two to ten seconds
Product Class:Measuring and Testing Instruments > Environmental Test > Halogen Leak Detectors
Product Details
【DateTime:2014-07-22 Browse:】【Font: Big Mid Small】【Print】【Close

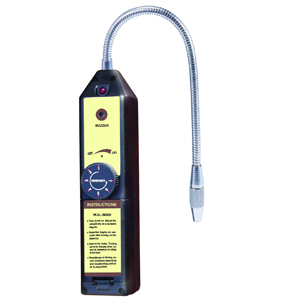

Economic Halogen Leak Detector
Part No: GADE-6000

Features:
-Detects all kinds of halogen refrigerant gas
-Sensitivity adjusted at any time
-Adjusted automatically to the best state of detecting Inner precise IC with Ultra-Low power consume circuit design,
-More stable, longer battery time
-Double-color visual display of battery voltage
-Excellent sensor,
-High sensitivity,
-Longer use time
Applications:
-The GADE-6000 may also be used to:
-Detect leaks in other systems and storage/recovery containers. It will respond to all halogenated (contains Chlorine of Fluorine) refrigerants.    This includes, but is not limited to:
   CFCs e.g. R12, R11, R500, R503 etc...
   HCFCs e.g. R22, R123, R124, R502 etc...
   HFCs e.g. R134a, R404s, R125 etc...
-Blends such as AZ-50. HP62. MP39 etc...
-Detect Ethylene Oxide gas leaks in hospital sterilizing equipment (it will detect the halogenated carrier gas).
-Detect SF-6 in high voltage circuit breakers.
-Detect most gases that contain chlorine, fluorine and bromine (halogen gases).
-Detect cleaning agents used in dry cleaning applications such as per chloroethylene.
-Detect halogen gases in fire-extinguishing system.

Specifications:
-Operating temperature:              0~52℃ (30℉ to 125℉)
-Maximum sensitivity:                 6 gr/yr, for all halogenated refrigerants
-Battery life:                               Approximately 50 hours normal use
-Response time:                         Instantaneous
-Work mode:                              Continuous, no limitation
-Fixed probe length:                    20cm
-Unit dimensions:                       22.9cmx6.5cmx6.5cm
-Warm-up time:                         Approximately 6 seconds
-Reset time:                              Two to ten seconds
-Power supply:                          6V DC four cell 7# excellent batteries
