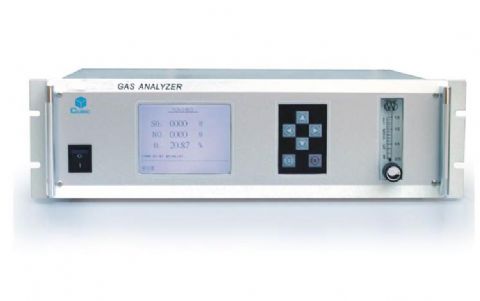

Online Infrared Flue Gas Analyzer
Description:
Used for measurement of the concentration of SO2 ,NO ,CO ,CO2 and O2 components in the flue gases. It is based on the micro-flow type non-dispersion infrared (NDIR) method for SO2 ,NO ,CO ,CO2 and O2 is measured by electrochemical cell method. This analyzer is designed with 19 inches 3U smaller physical dimensions. The general application is Continuous Emission Monitoring System(CEMS), combustion efficiency monitoring for various industrial furnaces or refuse incinerator and boiler.
Specification:
|
Measure Gas
|
Technology
|
Range
|
Resolution
|
Precision
|
Repetition Error
|
|
SO2
|
Micro-flow NDIR
|
2000ppm
|
1ppm
|
≤1%
|
≤1%
|
|
NO
|
Micro-flow NDIR
|
2000ppm
|
1ppm
|
≤1%
|
≤1%
|
|
O2
|
Electrochemical
|
25%
|
0.01%
|
≤3%
|
≤2%
|
|
Note: Measurement range can be customized by the requirement.
|
|
Measure Gas
|
Technology
|
Range
|
Resolution
|
Precision
|
Repetition Error
|
|
CO
|
Micro-flow NDIR
|
5000ppm
|
1ppm
|
≤1%
|
≤1%
|
|
CO2
|
Micro-flow NDIR
|
25%
|
0.01%
|
≤1%
|
≤1%
|
|
Note: Measurement range can be customized by the requirement.
|
|
Gas flow
|
0.7 ～1.2 L/min
|
|
Pressure of gas inlet
|
<1Bar
|
|
Sampling gas requirement
|
Remove water vapor,dust(<1um) and oil etc.
|
|
Response Time(TD+T90)
|
<10s (NDIR)
|
|
Warm-up Time
|
15min
|
|
Communication Interface
|
RS232/RS485
|
|
Output
|
4～20 mA
|
|
Alarm
|
Alarm
|
|
Work Temperature
|
0～50℃
|
|
Relative Humidity
|
5～85%
|
|
Ambient Pressure
|
86～108kPa
|
|
Power Source Supply
|
10V-220V±44V AC 50Hz±1Hz
|
|
Dimension
|
433mm×420mm×132mm（width×length×height）
|
|
Weight
|
12kg
|
