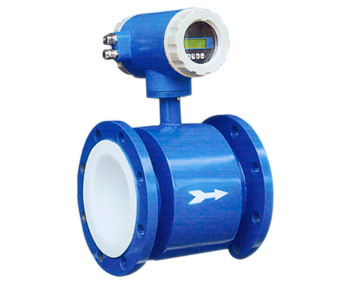

| Product Name: Smart Electromagnetic Flow Meter |
| Product Numbers: EMFL-1006 |
| Product Specifications: DN6-3000mm |
| Product Remark: Accuracy: ±0.2%, ±0.5% |
| Product Class:Measuring and Testing Instruments > Flow Meters > China Magnetic Flow Meters |
|
 Product Details The electromagnetic flowmeter is a kind of measuring instrument based on Faraday law of electromagnetic induction,which can measure the volume
flow of electrically conductive liquid ,seriflux and so on.The third most common flowmeter behind differential pressure and positive displacement flow meters, is the magnetic flow meter, also technically an electromagnetic flow meter or more commonly just called a mag meter. A magnetic field is applied to the metering tube, which results in a potential difference proportional to the flow velocity perpendicular to the flux lines. The physical principle at work is electromagnetic induction. The magnetic flow meter requires a conducting fluid, for example, water that contains ions, and an electrical insulating pipe surface, for example, a rubber-lined steel tube.An electromagnetic flowmeter is composed of two parts- electromagnetic flow
sensor and electromagnetic flow transducer.
Technical Features:
-
Not affected by the change of the fluid condition such as density, viscosity, temperature, pressure and conductivity, and the signal output of inductive voltage is linear to average velocity, therefore it has a high accuracy of measurement.
-
No obstacle parts in the meter tube so that no extra pressure loss; no movable parts, so meter has long service life.
-
Short straight pipe required, only 5D for upstream and 3D for downstream due to inductive voltage signal which is the average value in the cross-section of the pipe.
-
Only liner and electrode contact to the fluids, choose proper material of liner and electrode to prevent it from corrosion to ensure meter long operation life.
-
MCU and SMT technology used in converter to make it has high performance, high accuracy, low power consumption, stable zero point, easy parameter setting, dot-matrix display for total and instantaneous flowrate, velocity and percentage of flowrate.
-
Two-direction measurement for forward and reverse.
Technical Specifications:
- Size: DN 6 ~ DN 3000
- Medium: Conductive liquid, slurry
- Medium Temperature: ≤180oC
- Conductivity: ≥20 μS/cm
- Accuracy: ±0.2%, ±0.5%
- Repeatability: ±0.1%, ±0.15%, ±0.25%
- Rated Pressure: 0.6, 1.0, 1.6, 4.0MPa (or specified by customer)
- Display: Instantaneous flowrate, total flow, velocity, flowrate percentage with back light
- Signal Output: Analog 4 ~ 20mA, isolated, load resistor ≤750Ω; Pulse frequency 0 ~ 1kHz, OCT, external power∠35V DC, 250mA/max
- Power Supply: Single-phase 85 ~ 265V AC, 45 ~ 63Hz, power∠20W; 24V DC, 10VA
- Converter Type: Compact, remote
- Protection Grade: IP67/ IP68
- Explosion Proof:ExmⅡT4，ExmdⅡBT4Velocity: 0.3 ~ 12m/s( 0.1 ~ 15m/s as required)
- Liner: Chloroprene Gum (DN25 ~ DN3400)/ Polyurethane(DN25 ~ DN500)/ F4 ( DN25 ~ DN1200)/ F46(FEP)(DN25~DN200) /F40(DN25 ~ DN2800) /PO(DN50 ~ DN2800)/ PPS( DN50 ~ DN2800)
- Flowing Direction: Forward, Reverse
- Electrode Material: 316L, Pt, Ta, Ti, HB, HC
- Electrode Type: Standard, blade, removable
- Electrode Number: 3 pcs
- Flange Material: SS/ CS
- Alarm (N. O.): Empty, excitation, high/ low flowrate limit
- Ambient: Temperature: -25 ~ +60oC, Humidity: 5 ~ 90%
- Communication: RS-485/ Hart/ Profibus-DP
|
|
