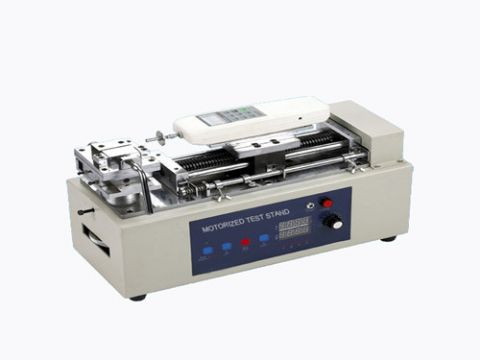

Electric Motorized Horizontal Test Stand
Zoom Browse
Product Name: Electric Motorized Horizontal Test Stand
Product Numbers: SSTS-41068
Product Specifications: Capacity: 500N-1000N
Product Unit: Stroke: 150 mm
Product Remark: Speed: 20~500 mm/min
Product Class:Measuring and Testing Instruments > Force Measuring Instruments > Test Stand
Product Details
【DateTime:2016-01-05 Browse:】【Font: Big Mid Small】【Print】【Close
Electric Motorized Horizontal Test Stand
           Widely applied in rubber plastic, light industry, textile, building windows and doors, compound materials, electric wire and cable, auto part, power generator, scientific research institute to do  the push pull force insertion force and destructive experiment.
Features:
     Design for NK and HF series force gauge.
    This product uses the double erecting pole structure, good stability, applies widely, easy to operate.
    Has the step less speed regulation, manual (inching), and the auto control switch function.

Specification
    Capacity: 500N-1000N
    Stroke: 150 mm
    Speed: 20~500 mm/min
    Voltage: AC 220V(AC 110V can be specified)


Note: The package exclude force gauge
