Manual Horizontal Test Stand
Zoom Browse
Product Name: Manual Horizontal Test Stand
Product Numbers: SSTS-40065
Product Specifications: Effective travel: 50mm
Product Unit: Maximum load: 500N
Product Remark: Dimensions: 450 * 260* 160 mm
Product Class:Measuring and Testing Instruments > Force Measuring Instruments > Test Stand
Product Details
【DateTime:2016-01-05 Browse:】【Font: Big Mid Small】【Print】【Close

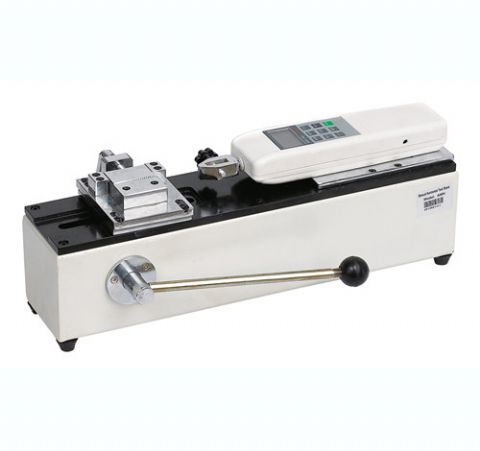

 Manual Horizontal Test Stand
Features
1: Horizontal installation;
2:Manual operation, simple stability operation
3:This test stand can be installed in table face to make the frame more stable.
Specifications
1:Effective travel: 50mm
2: Maximum load: 500N
3: Dimensions: 450 * 260* 160 mm
4: Net weight: 10.6 kg
5: Test effective area: 105 * 100 mm, the largest can reach 105 x152mm

Note: The package exclude force gauge
