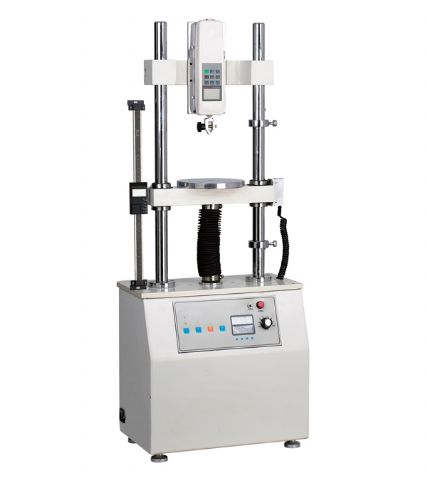

Electric Double Column Vertical Test Stand
Function
----The SSTS-41153 electric test stand is the matching test stand of HF and NK series force gauge.
----This product uses the double erecting pole structure, good stability, applies widely, easy to operate.
----Have the step less speed regulation, manual (inching), and the auto control switch function.
----Widely applied in rubber plastic, light industry, textile, building windows and doors,
----Compound materials, electric wire and cable, auto part, power generator, scientific research institute to do the push pull force insertion force and destructive experiment.
Specification
Capacity: 5000N-30000N
Stroke: 220mm or more
Speed: 15-240mm/min
Voltage: 220V(AC 110V can be specified)
Dimension: Small:115.5x49.5x37cm
Big:52.5X165X41cm
Gross Weight: 75-90KG
Note: The package exclude force gauge
