Handheld Wind Meters and Anemometers
Zoom Browse
Product Name: Handheld Wind Meters and Anemometers
Product Numbers: ANEM-4836C
Product Specifications: Air Velocity: m / s, km / h, ft / min, knots
Product Unit: Air Flow: CMM ( m³ / min ), CFM ( ft³ / min )
Product Remark: Automatic Power off
Product Class:Measuring and Testing Instruments > Industrial Instruments > Anemometer/Wind Speed Meter
Product Details
【DateTime:2014-10-25 Browse:】【Font: Big Mid Small】【Print】【Close

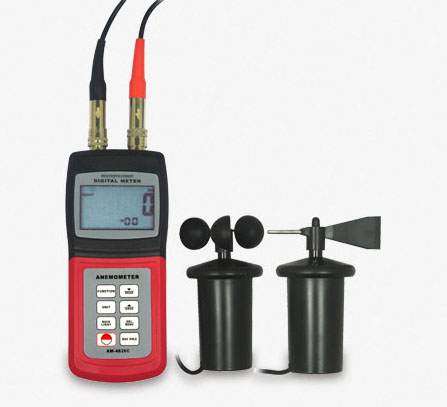

Handheld Wind Meters and Anemometers

* Wide applications: use to check air conditioning & heating systems , measure air velocity, wind speed, direction, temperature, etc.
* Multifunctional. the measurement unit can be selected according to different requirements.
* Maximum value data hold function.
* DATA HOLD function for storing 24 groups of datas.
* Low-friction ball-bearing design allows free vane movement.
* Separate type design, convenient to measure.
* Automatic Power off, 0-9 minutes set by users.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.

Specifications:
  Display   0.5" (13 mm) 4-digit LCD
  Measurement Units   Air Velocity: m / s, km / h, ft / min, knots
  Air Flow: CMM ( m³ / min ), CFM ( ft³ / min )
  Beaufort Scale: Force
  Wave Height: m
  Direction: ° from The North Direction
  Temperature: °C , °F
  Data Hold   Maximum Value
  Data Memorized   24 Groups
  Sampling Rate   Reading Per Second Approx
  Sensors   Air Velocity / Flow Sensor: 3-cup Probe
  Direction Probe: Low Friction Probe
  Temperature Sensor: Precision Thermistor
  Automatic Power Off   0 ~ 9 Minutes Set by Users
  Operating Conditions   Temperature: -10 ~ 60 °C (14 ~ 140 °F )      Humidity: < 80 %RH
  Power Supply   4 x 1.5v AAA size ( UM-4 ) battery
  Dimensions   Main Unit: 156 x 67 x 28 mm ( 6.1 x 2.6 x 1.1 inch )
  Velocity Sensor: 65 x 65 x 115 mm
  Direction Sensor: 86 x 69 x 115 mm
  Weight   260 g / 0.57 lb(Including Batteries)



Test Range Specifications:

    Range   Resolution   Accuracy
  Air Velocity   m / s ( meters / sec )   0.4 ~ 45.0   0.1 m / s   ± ( 2% n + 0.1 m / s )
  km / h ( kilo-meters / hour )   1.4 ~ 162.0   0.1 km / h   ± ( 2% n + 0.1 km / h )
  ft / min ( feet / minute )   80 ~ 8860   0.1 ft / min   ± ( 2% n + 1 ft / min )
  knots ( nautical MPH )   0.8 ~ 88.0   0.1 knots   ± ( 2% n + 0.1 nots )
  Air Flow   CMM ( cubic meters / min )   0 ~ 9999   0.001 ~ 1   ± ( 2% n + 0.1 m³ / min )
  CFM ( cubic ft / min )   0 ~ 9999   0.001 ~ 1   ± ( 2% n + 0.1 ft³ / min )
  Beaufort Scale   0 ~ 12   0.1   ± 0.5
  Direction   0 ~ 360 °   22.5 °   ± 22.5 °
  Wave Height ( Meter )   0 ~ 14   0.1   ± 0.1
  Air Temperature   14 ~ 140 °F   0.1 °F   0.9 °F
  -10 ~ 60 °C   0.1 °C   0.5 °C


Standard Accessories:

 1.  Main Unit

 2. Carrying Case (B02)

 3. Operation Manual

 4. Velocity Sensor

 5. Direction sensor

Optional Accessories:

 1. USB, RS-232 Data Cable With Software

 2. Bluetooth Data Out put With Software
