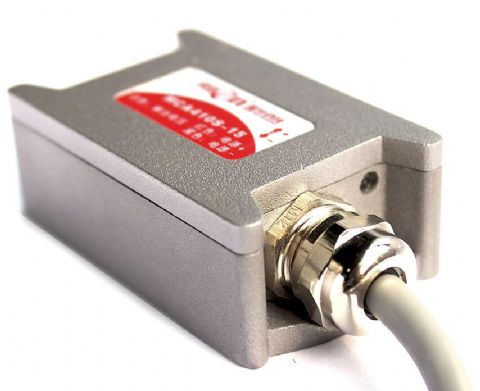

Single Dual Zxis Inclinometer Sensor With Data Output
Zoom Browse
Product Name: Single Dual Zxis Inclinometer Sensor With Data Output
Product Numbers: INCL-50215
Product Specifications: ±30 ±60 ±90°
Product Unit: IP66
Product Remark: Resolution ------------------ 0.1°
Product Class:Measuring and Testing Instruments > Industrial Instruments > Inclinometer Sensor
Product Details
【DateTime:2015-02-08 Browse:】【Font: Big Mid Small】【Print】【Close
Single Dual Zxis Inclinometer Sensor With Data Output

     A new version of small size digital type tilt sensor. it measure static gravity by buit-in accelerometer and convert into tilt change, and then it could measure the tilt and pitch relative to horizontal level. output is optional.Due to built-in MCU control system, the output linearity get two endments,ensuring the accuracy.
Application :
  Tower crane angle monitor
   Medical equipment level measurement
   4D movie dynamic seating
   Oil extraction machine angle measurement
   Small machinery vehicle position
   Solar power station.
   Rail-mobile monitoring

Features :
   Highly anti-vibration performance
   IP66 protection
   Zero setting on the spot.
   Output: RS485(MODBUS)
   Input 9-36V
   Working Temperature: -40~+85 Degree


Parameters Condition  ±30°  ±60°  ±90°
Resolution   0.1° 0.1° 0.1°
Measuremet Accuracy 25℃ ±0.2° ±0.3° ±0.5°
Response Time   0.05s 0.05s 0.05s
Zero Temp Drift -5~55℃ ±0.5° ±0.5° ±0.5°
-25~70℃ ±0.7° ±0.7° ±0.7°
-40~85℃ ±0.8° ±0.8° ±0.8°
Output Load >500Ω
Insulation Resistance >100MΩ
Weight 60g
Shockproof 100g@11ms, 3times/axis(half sinusoid)
Anit-vibration 10 grams, 10-1000Hz
Standard GB/T 191 Sj20873-2003







Note:
