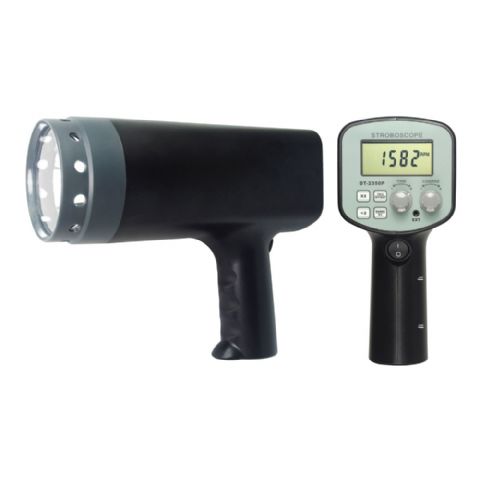

Digital Stroboscope Strobe Tachometer
Features:
Provides image of single stillness, two stillness or multiple stillness for the vibration object, rapidly rolling object or a periodic motion object, and can also observe the movement tracks
Can measure the rotational speed of a rotating object and to inspect the defect on its surface without the need to stop the machine and to adhere any mark to reflect the light and without the need to contact the object
Offers wide measuring range of 50 to 12,000 FPM with high resolution
Can be externally triggered or it can trigger external equipment
Equipped with Flash timer that helps in conservation of the flash tube
Allows external triggering device to automatically synchronize with the equipment
Features instant results thats clearly & legibly shown on an easy-to-read LCD screen and exact reading with no guessing or errors
Our Range:
STCO-2350PA50 ~ 12,000 FPM
STCO-2350PB50 ~ 40,000 FPM
STCO-2350PC50 ~ 20,000 FPM
STCO-2350PD50 ~ 30,000 FPM
STCO-2350PE50 ~ 2,000 FPM （Fit for Print and Textile）
Specifications:
Display: 5 digits, 10mm (0.4") LCD
Parameters Measured: Flashes per Minute (FPM)
Resolution: 0.1 FPM (50~999.9 FPM) , 1 FPM (over 1000 FPM)
Accuracy: ±(0.05%n + 1d)
Sampling Time: 0.3 second
Flash Adjust: Coarse adjustment, fine adjustment , ×2 and ÷2 for fast check
High & Low Range: Manual Conversion (Flashing light is much brighter at low range than at high range)
Flash tube type: Xenon lamp
Flash tube life 100 Million
Pakcage:
2350A
English manual
