Thermal Imaging Camera (Thermal Imager) With 3.6 Color LCD
Zoom Browse
Product Name: Thermal Imaging Camera (Thermal Imager) With 3.6 Color LCD
Product Numbers: THIM-5004
Product Specifications: 160×120 384×288
Product Unit: 3.6 touch screen
Product Remark: Daul LED film lights
Product Class:Measuring and Testing Instruments > Industrial Instruments > Thermal Imagers
Product Details
【DateTime:2014-11-22 Browse:】【Font: Big Mid Small】【Print】【Close

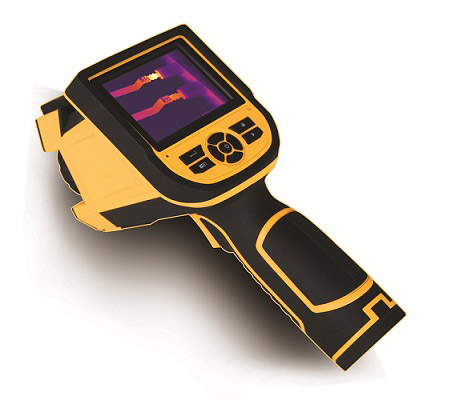

Thermal Imaging Camera (Thermal Imager) With3.6"TFT Color LCD

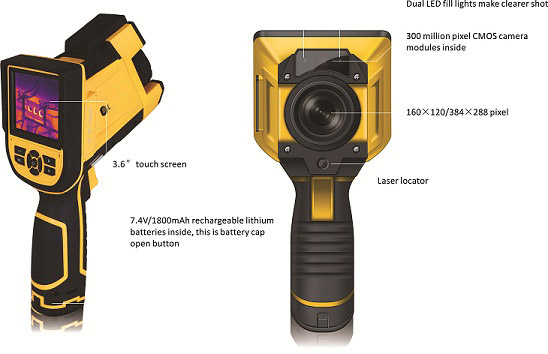

Main Features:
--2-meter drop resistant
--3 million daylight image
--3.6 touch screen
--Daul LED film lights make clearer slot
--Fusion display of IR & daylight image
--Real-time transmission of pictures and infrared vedios
--bluetooth audio transmission

Specifications:



 Item

THIM-5004

THIM-5008

Detector characteristics

 Detector type

 Uncooled FPA microbolometer

 Array size/format

 160×120

384×288

Image manage

 Field of view/min focus distance

 25o×19o /0.1m

 Spatial resolutions(IFOV)

 2.73mrad

1.37mrad

 Thermal sensitivity

 ≤0.05@30

 ≤0.04℃@30

 Frame rate

 50/60Hz

 Focus

 Manual

 Spectral range

 814um

 Built-in visible light

 Yes

Image display

 LCD display  3.6"TFT color LCD, 640×480
 Image adjustment  Auto/manual gain and brightness

 Color palette

 Color palette 11 palettes changeable

Measurement

 Temperature ranges

 -20℃~+350
(can expand to 650℃)

-20℃~+650
(can expand to 1200℃ or 2000℃)

 Accuracy

 ±2℃ or ±2% of reading, whichever is greater

 Measurement correction

 Automatic/manual

 Measurement mode

 Up to 5 movable spots. Up to 5 movable areas(maximum, minimum and average temperatures).Up to 2 movable lines.Line profile. Isotherms. Temperature difference. Alarm(voice,color)

 Setup functions

 Date/time, temperature unit, language

 Emissivity correction

 Variable from 0.01 to 1.0

 Backgroud temperature correction

 Automatic correction according to user input

 Atmospheric transmission correction

 Automatic correction according to user input
object distance, humidity and temperature

Image storage

 Storage Card

 8G SD card, max 32G

 Storage mode

 Automatic/manual single file saving, IR and Visual image link saving

 Thermal file format

 JPEG with original thermal measurement data;H.264 with original thermal measurement data

 Visual file format

 JPEG, H.264

 Voice annotation

 A built-in microphone Up to 60 seconds of digital voice clip with each cared thermal imaging

Laser pointer

 Laser pointer

 Class 2,1mw/635nm(red),IEC 60 285

Power supply

 Battery type

 Li-Ion, rechargeable

 Battery operating time

 3 hours continuous operation

 Charging system

 Intelligent charger or power supply adaptor 12V (optional) to random charge

 Power saving  Auto dormancy and auto-shut down
Environment

 operating temperature

 -15 ℃ - +50 ℃

 Storage temperature

 -25 ℃ - +60 ℃

 Encapsulation

 IP54

 Anti-shock

 25G , IEC 68-2-29

 Vibration resistance

 2G , IEC 68-2-6 grade

 Drop resistance

 2 meters

 Humidity

 ≤ 90% non-condensing

Physical characteristics

 Weight

 0.98kg

 Dimensious

 230mm×105mm×245mm

 Handrail

 Can be installed on both sides

 Tripod

 1/4″-20-UNC

Interface

 Memory card slot

 Micro SD(TF)

 External DC input

 Yes

 Video output

 Yes

 USB  Mini-USB Image,measurement data transfer

 Audio / data transmission

 Bluetooth( Headset/RS232)

Thermal Imager

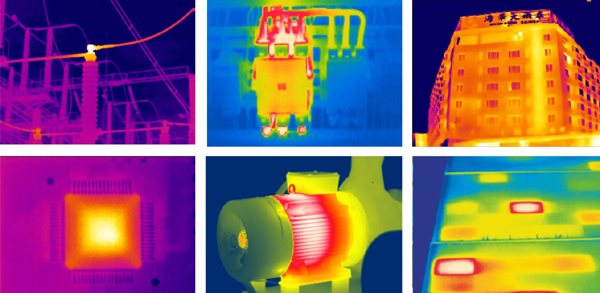

Application
