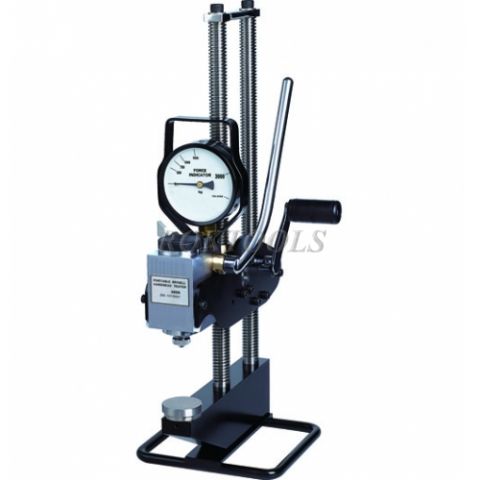

Hydraulic Brinell Hardness Tester 32-650HBW
Features:
-Unique designed system.
-Test Principle: Hydraulic princinple
-On the spot measurement. Easy to take to the site,
-Permanent Indentation
-High accuracy and high reliability, The tester manufactured to comply with ISO and ASTM Standards. The same as bench top testers.
-Wider Application : It can test parts in Any size and shape.
-Wider measuring Range: It can test various metal materials by combination of different test force, indenters and anvils.
Specification:
Test Force: 3000kgf(1000kgf, 750kgf, 500kgf optional)
Test Ball: 10mm Carbide test ball (5mm optional)
Test Range: 32-650HBW
Opening Dimension: 350mm( Height)*100mm (Throat depth)
Indicator Error: Complies with ISO 6506, and ASTM E10
Repeatability Error: Complies with ISO 6506, and ASTM E10
Test Force Error: ≤1% and Complies with ISO 6506, and ASTM E10
Standard Packing list:
-Tester 1
-Pressure Lever 1
-Brinell Hardness Test block with High value 1
-Brinell hardness Test Block with low Value
-Flat Anvil 1
-V anvil 1
-Dome Anvil 1
-Anvil Cap 1
-20X reading microscope 1
-10mm carbide test ball 1
-Small Size hexagonal Wrench 1
Accessories Optional
-Brinell Hardness Block (high or low value)
-Hard alloy Test Ball (5mm, 10mm)
-Spare Parts (Hydraulic oil capsule, Hydraulic oil, O-ring etc.)
-Maintaining Tools
-Automatic Brinell Indentation Measurement System
-Rechargeable Angle Grinder
