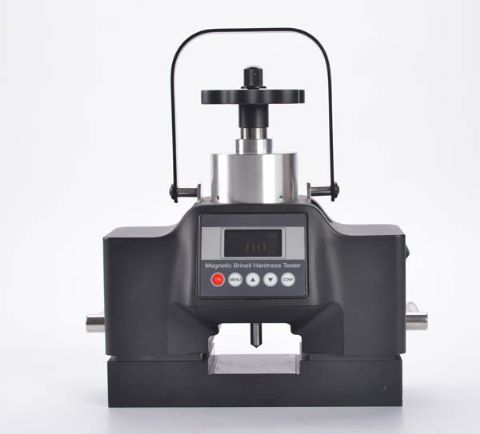

Digital Magnetic Brinell Hardness Tester
Features:
Unique designed products.
Applies abroad high qualified force sensor, more reliable.
Portable and easy to use. only 5.1KG weight.
Large LCD display
Specification:
Test Force: 187.5kgf
Test Force Error: ≦±1% Complies with GB/ T231.2,ASTM E10, ISO6506.2
Indenter: 2.5mm test ball
Testing Range: 100-650HBW
Indication Error: Complies with GB/T231.2,ASTM E10,ISO6506.2
Indication Repeatability: Complies with GB/ T231.2,ASTM E10, ISO6506.2
Operating Temperature: 5-45℃
Nominal Dimension: Length 245mm × Width 105mm × Height 238mm
Weight: 5.1kg
Test Piece Surface: Flat: Area ≧195× 60mm
Thickness ≧5mm Cylinder: Diameter ≧60mm Length ≧200mm Thickness ≧8mm
