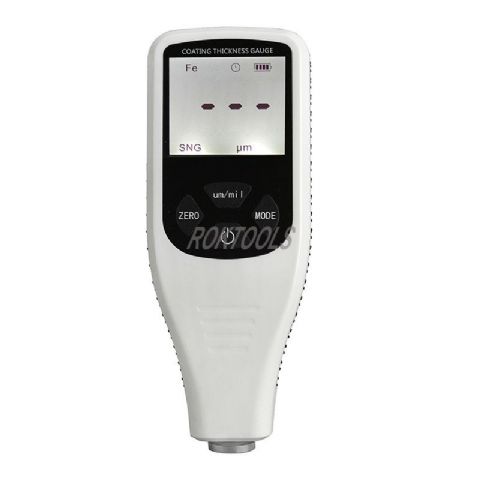

Mil UM Painting Thickness Gauge
Features:
FSTN LCD Display
Built-in
Black Light
Integral
Probe F&NF, Auto detecting attribute of substrates
Nice
shell design for easy reading
Built-in
Silicone Slip Strip
Measurement
Range: 0~1300um
Accuracy:
±(2.5%+1um)
Resolution:
0.1um
Zero
Calibration and 50/100/250/500/1000um Calibration Points
5 minutes
auto power off to saving power
Power
Supply: 4 x AAA batteries
Operating
Temperature: 0 to 40℃ (32 to 104℉)
Size:
155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)
Weight:
125g (4.41 oz)
Technical
specifications
|
|
Probe
F
|
Probe
N
|
|
Principle
|
Magnetic Induction
|
Eddy Current
|
|
Range
|
0~1300um
0~51.2mil
|
0~1300um
0~51.2mil
|
|
Accuracy
|
±(2.5%+1um)
±(2.5%+0.04mil)
|
±(2.5%+1um)
±(2.5%+0.04mil)
|
|
Resolution
|
0.1um/0.01mil
|
0.1um/0.01mil
|
|
Calibration
|
Points: ZERO/50/100/250/500/1000um
|
|
Units
|
um, mil
|
|
minimum curvature radius convex: 1.5mm
|
|
minimum curvature radius concave: 25mm
|
|
minimum measuring area: Diameter
6mm
|
|
minimum thickness of substrate
|
0.5mm(0.02”)
|
0.3mm(0.012”)
|
|
Power
|
4 x AAA batteries
|
|
Operation Environment
|
Temperature:0~40℃(32~104℉) Humidity:20%~90%RH
|
|
Size
|
155mm x 62mm x 35mm
(6.10” x 2.44” x 1.38”)
|
|
Weight
|
125g(4.41oz)
|
