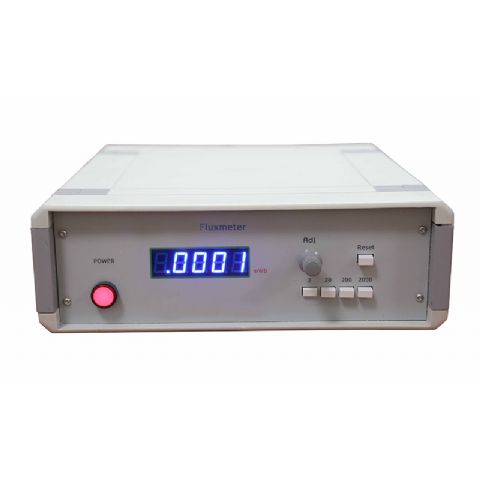

Digital Fluxmeter
Zoom Browse
Product Name: Digital Fluxmeter
Product Numbers: GSME-210B
Product Specifications: 2mWb, 20mWb, 200mWb, 2000mWb
Product Unit: Drift: less than 1uWb/min
Product Class:Measuring and Testing Instruments > NDT Instruments > Fluxmeter
Product Details
【DateTime:2018-11-29 Browse:】【Font: Big Mid Small】【Print】【Close

Digital FLuxmeter

Function

1. Adopt pulling coil to measure the magnetic flux of permanent magnet;
2. Adopt Helmholtz coil to measure the magnetic moment of permanent magnet;
3. Adopt closed-circuit test fixture to measure overall magnetic flux of the motor stator;
4. Adopt closed-circuit test fixture to measure overall magnetic flux of the motor rotor.

Features

1. Directly read magnetic flux data;
2. Judge the direction of integration by “+” or “-”;
3. Suitable for matching with different integration coils and fixtures;
4. Adjust stably, low drift, less than 1uWb/min;
5. High input impedance, the coil has small effect on the test.
6. Low drift
7. Fast test
8. The user can measure samples with pulling method,

Technical parameters

1. Power supply: 220V/0.5A;
2. Display: 4 1/2 bit;
3. Test range: 2mWb, 20mWb, 200mWb, 2000mWb, four gears;
4. Test accuracy: 0.5%(corresponding to each full range);
5. Drift: less than 1uWb/min;
6. Min. resolution: 0.1uWb (corresponds to 2mWb);
7. Dimension: 285mm × 300mm × 100mm, weight: 3kg;
8. Operational environment: 0 ° C to +50 ° C, humidity: 35 to 80%.
