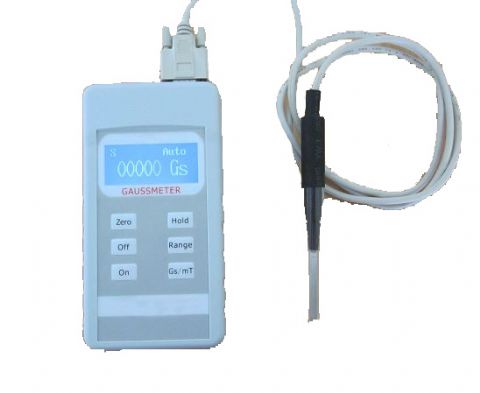

Portable Gauss Meter
      Gauss Meters GSME-3201 is based on hall effect of the magnetic field intensity, the latest progress of measuring instruments using DSP design handheld gaussian meter. Maximum range: ±30.0mT  ,±300mT and 3000mT, basic error, the smallest 1.0%. Test and display powerful, easy to carry, magnetic field and the magnet for the best magnetic field surface magnetic field measuring instrument.
     Suitable for: magnets, surface magnetic, dc coils magnetic field, dc magnet clearance magnetic field measurements.
Instrument characteristics: features include automatic zero adjustment, automatic range transform, can lock peak and relative model transformation, etc. The outward appearance is exquisite, bitmap frequency display clear, adopt standard magnetic field calibration. Due to the low voltage circuit design, battery service life is longer. Probe chip adopt imported gaas hall device, accuracy and linearity reached higher level.

  1. Directly display the N/S

  2. Zero  function

  3. mT/Gs convertible

  4. Auto Power off after 60 sec.

  5.  Large LCD Display

 Technical parameters:
1, Power supply batteries: 6V (4 AA batteries), with automatic shutdown function;
2, Test range: ±30.0 mT, ±300mT, ± 3000mT three gears can be automatically shift, range;
3,Test dc magnetic accuracy than: 1.0% (corresponding to every file full range);
4, Magnetic field minimum resolution: 0.1 mT;
5, Automatic a key zero function;
6, With peak keep function and polarity judgment display function;
7, Volume: 170mm x 90mm x 40mm, weight: 400g;
8,Use environment ℃ to + 50, humidity: 35 ~ 80%;
9, General probe specification: width 3.5 mm, thickness: 0.6 mm.
