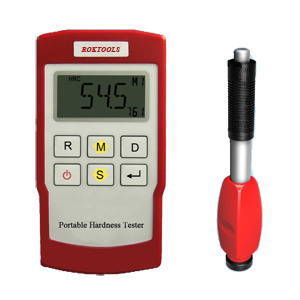

Portable Hardness Tester With Wireless RF Probe
Art No: HT-3202
Description
The HT-3202 is an innovation of ROKTOOLS series portable hardness tester. It works with a wireless RF probe. The RF probe can transfer measuring value to
main unit wirelessly via RF module within the range of 10 meters. There is a rechargeable Li-ion battery inside the RF probe and can be charged directly by USB port of PC. The main unit with LCD display can be placed around anywhere. So one person is OK for operation. Besides, the main unit with magnetic housing can also be attracted upon to the surface of workpiece to avoid of dropping to damage.
What is new and different ?
--R/F wireless probe
--Universal impact direction mode, it does not need to set up different impact direction, just take measurement at any angle
--High accuracy: ±2HL(0.3% @HL800)
--Linear accuracy for any angles
--Different probe can be identified automatically
--No compensation for impact direction
--Dual values( Leeb value and one conversion value) can be displayed at the same screen
--Big LCD display with backlight
--Ten testing materials including forged steel
--It has strength conversion value
--It can connect micro-printer wirelessly
--300 data for memory
--Customer re-calibration allowed
--Power off automatically
--More economic and more convenient to use
Specification
| Principle |
Leeb hardness measurement |
| Accuracy |
±0.3% @ HL=800, Repeatability: ±2HL |
| Display |
Digital LCD with backlight |
| Hardness scale |
HL/HRC/HRB/HB/HV/HS/σb |
| Measuring range |
HL170-960/ HRC17-69/ HRB13-101.7/ HB20-655/ HV80-940 / HS32-99.5 / σb(rm)255-2180N/ mm2 |

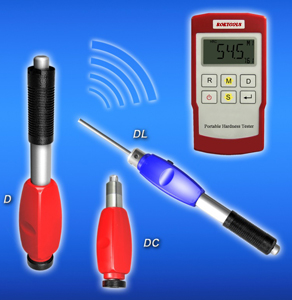

| Impact device |
r/f wireless probe D / DC / DL / C / D+15 |
| r/f communication distance |
10m in space |
| r/f frequency |
2.4GHz |
| Impact direction |
Universal angle (UA) type |
| Materials |
10 common metal materials |
| Memory |
300 data can be stored and re-readable |
| Statistics |
Calculated automatically |
| Re-calibration |
Allowed by user |
| Indicator |
Low battery |
| Communication interface |
Wireless micro-printer |
| Auto power off |
Auto |
| Power supply |
1.5V AA alkaline battery x 2 (main unit) / 3.7V Li-ion rechargeable battery (wireless probe) |
| Working environment |
-10~+40ºC |
| Dimension (mm) |
124x67x30 |
| Net weight (g) |
240 |
| Standards |
Conforming to ASTM A956, DIN 50156, GB/T 17394-1998 |
Standard package
--HT-3202 main unit 1
--R/F impact device D 1
--Test block D 1
--Small support ring 1
--Cleaning brush 1
--USB cable 1
--Operation manual 1
--Test certificate 1
--Carrying case 1
Optional accessories
--R/F impact device DC
--R/F impact device DL
--R/F impact device C
--R/F impact device D+15
--Wireless micro printer
--Special support rings
--Standard big support ring for probe
--Small support ring for probe
--Impact body D
--Carbide ball tip D
--Test block D with certificate
--Test block D w/o certificate
