High-voltage Holiday Detector 0.5kv~30kv
Zoom Browse
Product Name: High-voltage Holiday Detector 0.5kv~30kv
Product Numbers: HODE-1009
Product Specifications: 0.5kv~30kv
Product Unit: Thickness: 0.05~10mm (or OEM over 10mm)
Product Remark: 3 Digits LCD Display
Product Class:Measuring and Testing Instruments > NDT Instruments > Holiday Detector
Product Details
【DateTime:2018-04-25 Browse:】【Font: Big Mid Small】【Print】【Close

High-voltage Holiday Detector 0.5kv~30kv

HODE-1001  Mainly used for petroleum pipeline(High voltage)
HODE-1002  Mainly used for the antisepsis of Pottery
HODE-1009  Displays holidays of antisepsis coating on two digital tube

Features:

-Wide range: 0.5-30kv Testing thickness: 0.05-10mm
-High accuracy:
-3 Digits LCD Display
-Leakage points storage
-Audio alarm
Specifications:
1. Applicable detection thickness: 0.05~10mm
2. Output High-voltage: 0.5kv~30kv (stepless and continually adjustable)

3. Leakage points showed
4. Direct indication of output high-voltage
5. Battery:12V/2800mA
6. Power consumption: about 6W
7. Dimension: 220x130x88mm
8. Back light
9. Instantaneous boot, and automatic shutdown
10. 3–digit LCD displays output voltage
11. Alarm: Dual alarm with earphone and buzzer

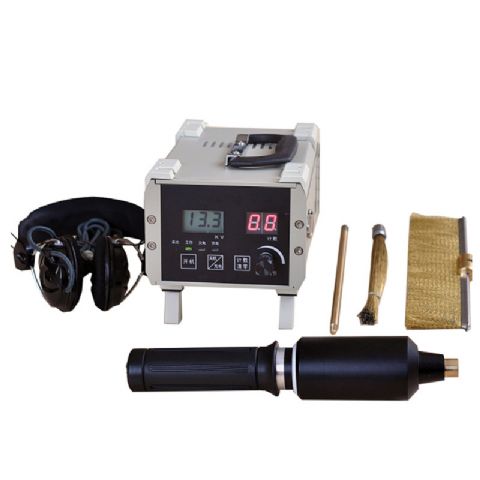

Whats in the package:

  • High voltage detector
  • Brush probe
  • Brace rod
  • Earth lead
  • Earphone
  • Power charger
  • Fuse
  • Shoulder strap
  • Instruction manual
