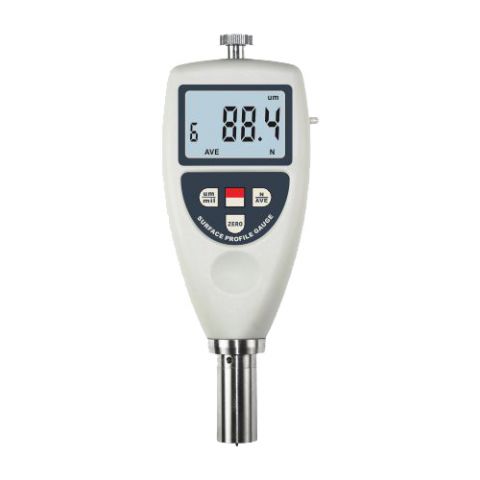

Surface Profilometer Roughness Meter Roughness Gauge
Rougness is very important data for material. It help techinician to judege if the material is pratical to certain purpose. Rok roughenss tester or meter /profilometer is an instruments to measure the roughness of material quickly. ROTE-4401 is simple and easy-to-use one. Mainly measure the spray sand.
Features:
*Powerful, Accuracy
*Large LCD display
* Public and imperial units converted, with the average computing power.
* With a maximum value latch, undervoltage alarm indicator function.
* Direct measurement of the surface peak-trough height.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Product Parameters
Resolution
|
1 µm (0.1 mils)
|
| Range |
0 µm ~ 750µm/(0mils to 29.5mils)
|
Measurement Speed
|
>30 (readings per minute)
|
Accuracy
|
±5% or ±5 µm ( whichever is the greater)
|
Operating Temperature
|
0~ 50°C
|
Operating Humidity
|
＜80%RH
|
Size
|
170x63x24 mm
|
| Power Supply |
2x1.5vAAA Um-4 Battery
|
Weight
|
310 g (Not including batteries)
|
Product Accessories
|
Standard Accessories
|
Main Unit
|
| Zero Calibration Block |
Carrying Case
|
Operation Manual
|
|
Optional Accessories
|
USB data output
|
| Bluetooth data output |
