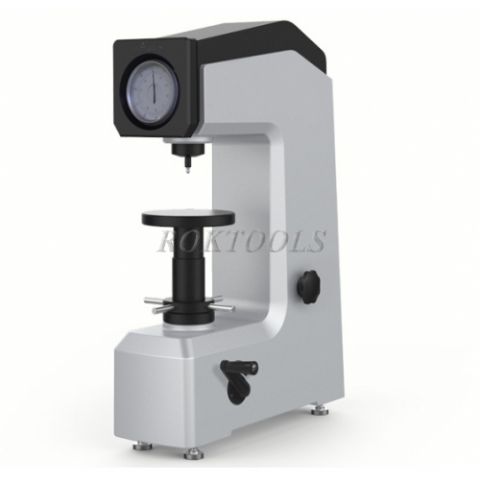

Manual Superficial Rockwell Hardness Tester
Part No: ROHT-5014
Supplied by ROK International Industry Co., Limited
Features:
1. Dial indicator resolution is 0.5HR, Better than traditional 1HR resolution;
2. Force knob adopts the metal material to replace the plastic, With longer life-span
3. Loading, dwell and unloading is buffering by oil pump,it eliminate the operator s tiredness ;
4. Intenter protector is available to improve the using lifetime of indenter.
5. Manual load force
Specifications:
| Product Name |
Manual Superficial Rockwell Hardness Tester |
| Model |
ROHT-5014
|
| Rockwell Scales |
HR15N,HR30N,HR45N,HR15T,HR30T,HR45T |
| Preliminary Test Force |
3Kgf(29.42N) |
| Test Force |
15Kgf(147.1N),30Kgf(294.2N),45Kgf(441.3N) |
| Dwell Time |
Adjustable 1-60s |
| Hardness Indication |
Analogue Display |
| Resolution |
0.5HR |
| Loading Control |
Manual |
| Max. Height Of Specimen |
175mm |
| Instrument Throat |
165mm |
| Dimension(LxWxH) |
546x182x755mm |
|
|
620x460x870mm |
|
|
120Kg |
|
|
90Kg |
| Execution Standard |
GB/T230.2, JIS Z2245, EN-ISO 6508 , ASTM E-18 |
Packing list:
- Rockwell Hardness Tester ROHT-5014
- Test Block
- Ø150mm Flat Anvil
- Ø40mm V-shape Anvil
