| Product Name: Bench-top Automatic Rockwell Hardness Tester Testing Machine |
| Product Numbers: ROHT-5313 |
| Product Specifications: Resolution: 0.1HR |
| Product Unit: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, |
| Product Class:Measuring and Testing Instruments > NDT Instruments > Rockwell Hardness Tester |
|

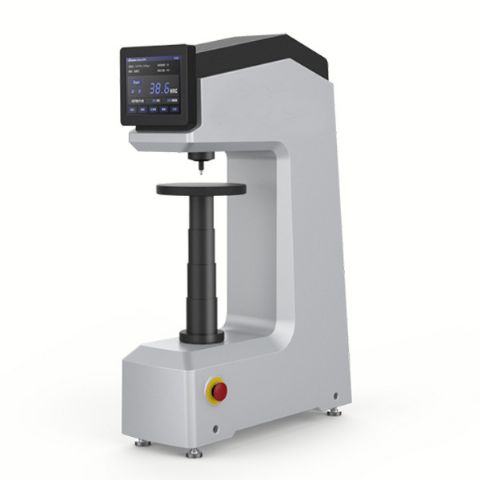

 Product Details Bench-top Automatic Rockwell Hardness Tester Testing Machine
Features:
- Bench top more stable, more accuracy with 0.1HR resolution.
- Fully automatical smart Hardness Tester. It can test Both Rockwell and Superficial Rockwell hardness automatically.
- One-key operation, auto lifting, auto load-change, auto loading/dwell/unloading, auto conversion, auto testing. the inspector only read the results.
- Designed with friendly operating interface, 5.2“ large color touch screen can read the data clearly directly displays test force, dwell time, conversion value, indenter type, etc. Touch screen make the operation much easier.
- Automatically calculates and displays test result, Max, Min, Ave, and hardness deviation. With 0.1HR higher Resolution.
- Available to set up upper and lower limit, with the function of over-error warning, data analysis chart, single test and group test.
- With software compensation, available to compensate ±3HR, need not mechanical adjustment.
- With function of auto conversion according to ASTM E140, without checking hardness contrast table.
- Multi-languages system: Chinese;English;German;Portuguese;Turkish;Czech;Korean. convertible.
- Available to save 2000 single test results and 1000 group test results. Can realize data viewing and analysis
- With optional wireless Bluetooth printer, there is no need to record results and report by hand.- With optional data analysis software and Bluetooth receiver to input and analyze data.
- Support FexQMS data analysis and control software, improve integral control and decrease material consumption.
What mateiral Can it measure?
-Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
-Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
-Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Specification:
| Product name |
Auto Rockwell Hardness Tester |
Full-auto Superficial Rockwell Hardness Tester |
Full-auto Twin Rockwell Hardness Tester |
| Model |
ROHT-5313 |
ROHT-5314 |
ROHT-5315
|
| Preliminary Test Force |
10Kgf(98.1N) |
3Kgf(29.4N) |
3Kgf(29.4N);10Kgf(98.1N) |
| Total Test Force |
60Kgf(588.4N),100Kgf(980.7N),
150Kgf(1471N)
|
15Kgf(147.1N),30Kg(294.3N),45Kgf(441.3N) |
15Kgf(147.1N),30Kgf(294.3N),45Kgf
(441.3N);60Kgf(588.4N),100Kgf
(980.7N),150Kgf(1471N) |
| Rockwell Scale |
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH,HRK,HRL, HRM, HRP, HRR, HRS, HRV |
| Superficial Rockwell Scale |
HR15N,HR30N,HR45N,HR15T,HR30T,HR45T ,HR15W,HR30W,HR45W,HR15X,HR30X,HR45X,HR15Y,HR30Y,HR45Y |
| Full Rockwell Scale |
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV;15T,30T,45T;15T,30T,45T;15W,30W,
45W;15X,30X,45X;15Y,30Y,45Y;15N,30N,45N |
| Dwell Time |
1-60s adjustable |
| Display Screen |
5.2 ”Color touch screen; Resolution: 640*480 |
| Resolution |
0.1HR |
| Loading Mode |
Auto loading/dwell/unloading |
| Conversion Scale |
HRC,HV,HBS,HBW,HK,HAR,HRD,HR15N,HR30N,HR45N,HS,HRF,HR15T,HR30T,HR45T,HRB |
| Conversion Standard |
ASTM,DIN |
| Language |
Chinese、English,German,Portuguese,Turkish,Czech,Korean |
| Software Correction |
-3.0HR ~ +3.0HR, step value 0.1HR |
| Data Processing |
2000 group single dat, line chart of group data function; respectively provide single data viewing and group data viewing |
| Print |
Optional wireless printer |
| Max. Height of Specimen |
280mm |
| Throat |
170mm |
| Power Supply |
AC220V/50Hz;AC110V/60Hz |
| Dimension |
615x 225x 885mm |
| Packing Dimension |
670×440×1000 (mm) |
| Net Weight/Gross |
125Kg/140Kg |
| Execution Standard |
GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18 |
Whats in the package:
-ROHT-5313/5314/5315(One of them)
-Hardness block
-Hardness block HRC
-Hardness block HRB
-Hardness block HR30N
-Hardness block HR30T
-Ø150mm Flat anvil
-Ø60mm Flat anvil
-Ø40mm V-shape anvil
-Ø1.588mm Ball indenter
-Ø1.588mm Steel ball
-Diamond indenter
-Weight A
-Weight B
-Weight C
-Anti-dust cover
-Operation manual
Manufacturer:Rok International Industry Co., Limited.
|
